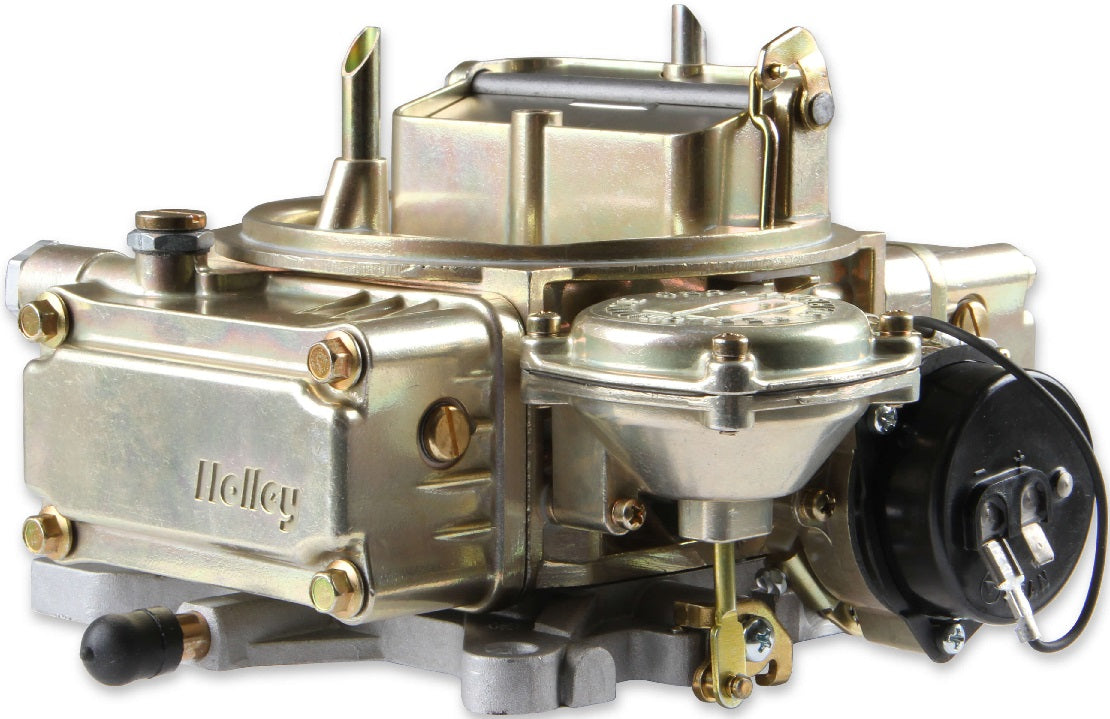

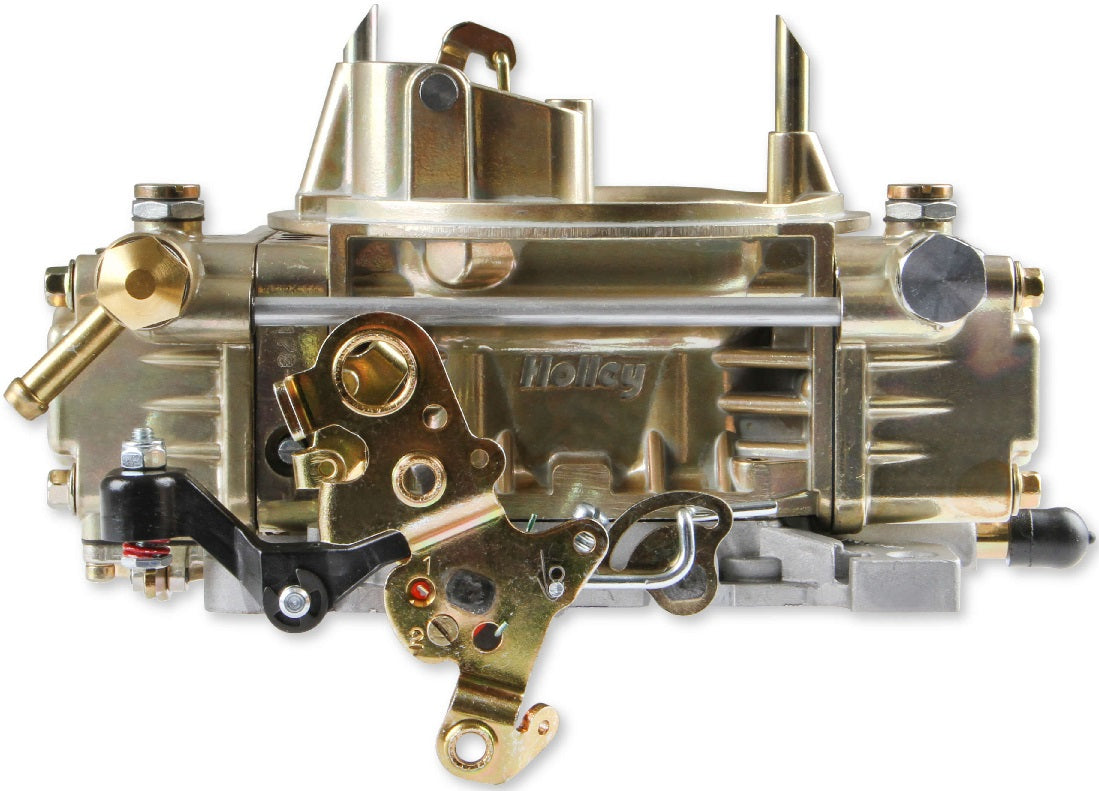

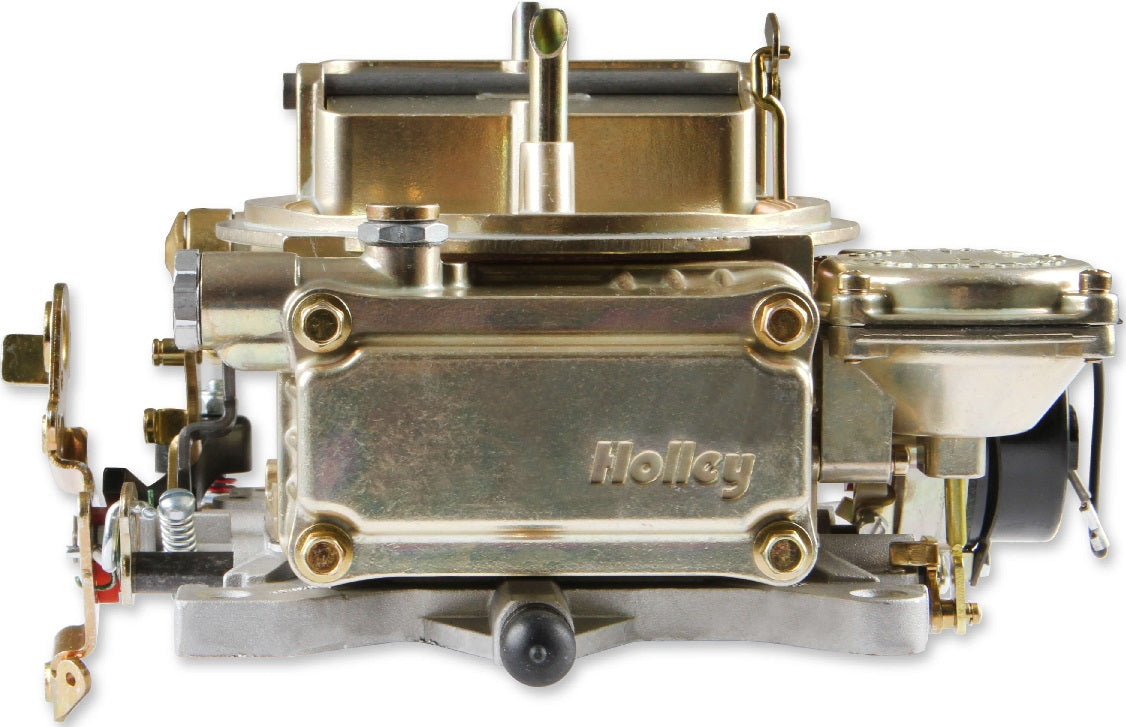

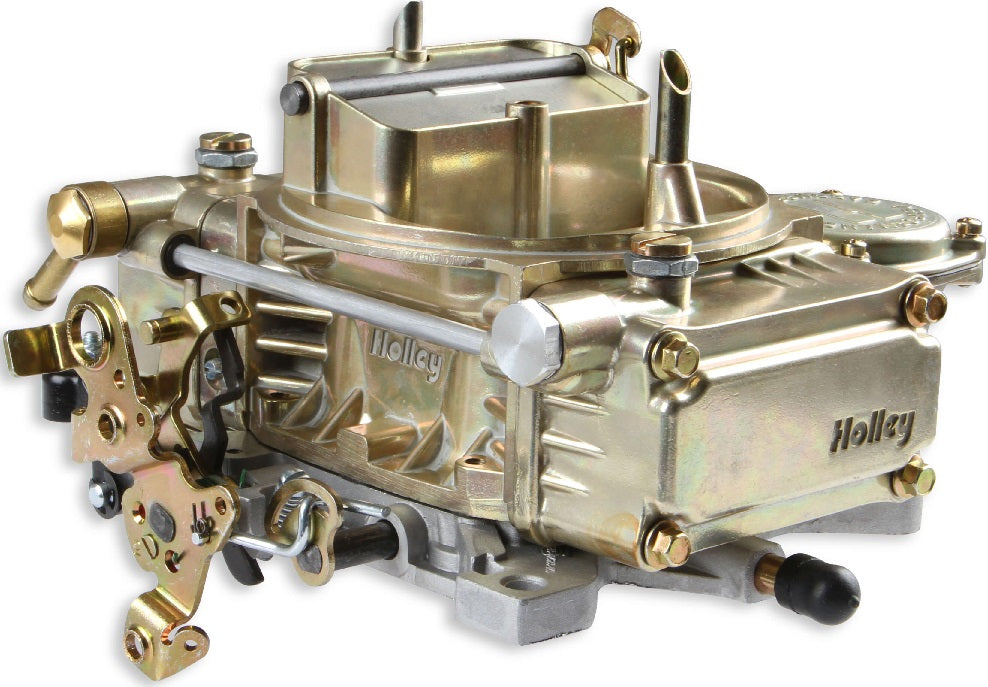

CARBURETOR,4160,465CFM,UNIV,VACUUM,CHROMATE

BRAND NEW HOLLEY CLASSIC CARBURETOR, DICHROMATE FINISH, 465 CFM, VACUUM SECONDARIES, ELECTRIC CHOKE, COMPATIBLE WITH GASOLINE

CLASSIC HOLLEY CARBURETORS ARE CALIBRATED & INTENDED FOR SMALL V8 OR 6 CYLINDER ENGINES AS WELL AS 2X4 STREET TUNNEL RAM STYLE SET UPS. DESIGNED WITH A SINGLE FUEL INLET & FACTORY PRESET ELECTRIC CHOKE FOR EASE OF INSTALLATION.

NOTE: THIS CARBURETOR HAS THE SQUARE BORE FLANGE BOLT PATTERN. IT REPLACES HOLLEY, EDELBROCK, CARTER AFB & AUTOLITE STYLE CARBURETORS WITH 5 3/16" X 5 5/8" BOLT PATTERN. SPREAD BORE STYLE INTAKE MANIFOLDS WILL NEED AN ADAPTER TO INSTALL THIS CARBURETOR, SIMILAR TO MR. GASKET #1932.

FEATURES:

• GOLD DICHROMATE FINISH & CLASSIC HOLLEY LOOKS
• CALIBRATED & INTENDED FOR SMALL V-8 ENGINES
• A�LUMINUM CONSTRUCTION ALLOWS BETTER HEAT DISSIPATION AND LIGHTER WEIGHT
• VACUUM SECONDARIES FOR USE ON WIDE VARIETY OF VEHICLES. COMPENSATE FOR ALL VEHICLE WEIGHTS, GEARING & TRANSMISSIONS TO ALLOW SMOOTH OPENING OF SECONDARIES
• SINGLE FEED FUEL INLET FOR EASY INSTALLATION
• POWER VALVE BLOW-OUT PROTECTION
• FACTORY PRESET ELECTRIC CHOKE FOR EASY STARTUPS
• 100% WET-FLOW TESTED BY HOLLEY TECHNICIANS TO ASSURE IT ARRIVES READY TO RUN

SPECS:

• BARRELS: 4
• BILLET COLOR: NONE
• BOOSTER: STRAIGHT
• CARBURETOR USE: STREET
• CFM: 465
• CHOKE: ELECTRIC
• CIRCUIT: 2
• FINISH: GOLD DICHROMATE
• FUEL: GASOLINE
• FUEL INLET: SINGLE
• MATERIAL: A�LUMINUM
• MODEL: 4160
• PRIMARY MAIN JET: 53
• PRIMARY POWER VALVE: 6.5
• PRIMARY PUMP NOZZLE SIZE: 25
• PRODUCT TYPE: CARBURETOR
• SECONDARIES: VACUUM
• SUPERCHARGED APPLICATION: NO
• THROTTLE BORE: 1.500"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CARBURETOR HERE.
