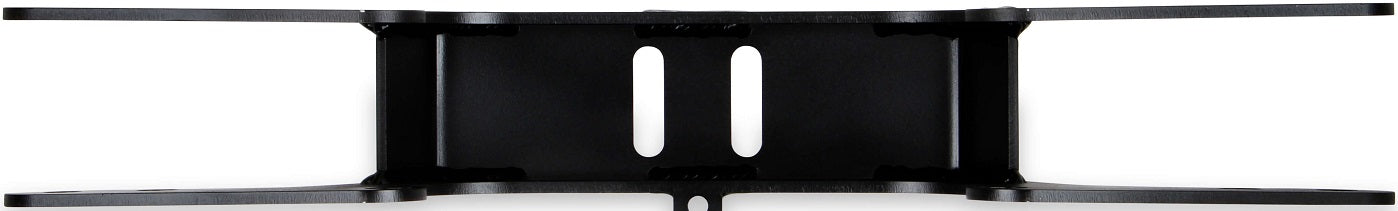

TRANSMISSION CROSSMEMBER,HEMI SWAP,MOPAR 70-74 E-BODY

BRAND NEW HOOKER BLACKHEART TRANSMISSION CROSSMEMBER, BLACK FINISH, GEN III H�EMI, COMPATIBLE WITH 1970-1974 CHALLENGER V8

HOOKER BLACKHEART TRANSMISSION CROSSMEMBER IS PART OF THE MOST COMPREHENSIVE LINE OF GEN-3 H�EMI SWAP COMPONENTS AVAILABLE FOR THE MOPAR E-BODY. THIS CROSSMEMBER ALLOWS THE INSTALL OF A727 3-SPEED, NAG1 5-SPEED, 8HP70/8HP90 8-SPEED AUTO TRANSMISSIONS, OR ТREMEC TKX (GM STYLE) MANUAL TRANSMISSION WHEN USED WITH CORRESPONDING ADAPTER PLATE (SOLD SEPARATELY).

NO CUTTING OR DRILLING IS NECESSARY, JUST BOLT IT IN THE FACTORY LOCATION USING THE SUPPLIED HARDWARE. THE MODULAR DESIGN ALLOWS THE USE OF SEVERAL DIFFERENT TRANSMISSION OPTIONS WITHOUT THE NEED TO BUY OR FABRICATE A DIFFERENT CROSSMEMBER - SIMPLY CHANGE TO A DIFFERENT ADAPTER PLATE AND THE DRIVELINE & U-JOINT ALIGNMENT HAVE BEEN PRESET TO THE CORRESPONDING TRANSMISSION.

BHS567 CROSSMEMBER IS DESIGNED TO USE A POPULAR & INEXPENSIVE GM STYLE TRANSMISSION MOUNT FOR ITS COMPACT DESIGN THAT ALLOWS FOR BETTER GROUND CLEARANCE THAN THE FACTORY CROSSMEMBER (HOOKER PART NUMBER 71223029HKR OR 71223030HKR - SOLD SEPARATELY). SOLID 3/16" STEEL CONSTRUCTION AND BLACK POWDER COATED FINISH PROVIDES LONG LASTING PERFORMANCE AND GOOD LOOKS.

NOTE: USE WITH ENGINE MOUNTS BHS566 AND POLYURETHANE TRANSMISSION MOUNT 71223029HKR (BLACK), OR 71223030HKR (RED)

NOTE: IUSE WITH DRIVERS SIDE MOUNTED STARTER ON NAG1, 8HP70 & 8HP90 TRANSMISSIONS TO AVOID CLEARANCE ISSUES WITH FACTORY STEERING SYSTEM.

THIS CROSSMEMBER REQUIRES TRANSMISSION SPECIFIC ADAPTER PLATE (SOLD SEPARATELY):

• BHS568 A727 TRANSMISSION ADAPTER
• BHS569 NAG1 TRANSMISSION ADAPTER - PINCH WELD AT FIREWALL WILL NEED TO BE ROLLED
• BHS570 8HP70 TRANSMISSION ADAPTER - PINCH WELD AT FIREWALL WILL NEED TO BE ROLLED
• BHS591 8HP90 TRANSMISSION ADAPTER - PINCH WELD AT FIREWALL WILL NEED TO BE ROLLED
• BHS592 ТREMEC TXK (GM STYLE) TRANSMISSION ADAPTER - REQUIRES SOME TRANSMISSION TUNNEL CUTTING

COMPATIBLE WITH:

• PLYMOUTH:
• 1970-1974 BARRACUDA
• 1970-1974 CUDA
• DODGE:
• 1970-1974 CHALLENGER

FEATURES:

• ACCOMMODATES POPULAR A727, NAG1 , 8HP70, 8HP90, OR ТREMEC TKX (GM STYLE) TRANSMISSIONS (REQUIRES TRANSMISSION SPECIFIC ADAPTER PLATE)
• USES THE FACTORY MOUNTING HOLES - FOR EASY INSTALLATION
• HIGH TUCK DESIGN TO MAXIMIZE GROUND CLEARANCE
• ACCOMMODATES UP TO 3" EXHAUST
• USES GM STYLE TRANSMISSION MOUNT - HOOKER PART# 71223029HKR OR 71223030HKR (SOLD SEPARATELY)
• MODULAR DESIGN WITH BOLT-ON TRANSMISSION ADAPTER ALLOWS FUTURE TRANSMISSION SWAPS W/O REPLACING THE CROSSMEMBER
• HEAVY DUTY 3/16" STEEL CONSTRUCTION - FOR STRENGTH & DURABILITY
• INCLUDES HARDWARE & INSTRUCTIONS

SPECS:

• APPLICATION: 1970-1974 MOPAR E-BODY
• BRAND: HOOKER BLACKHEART
• FINISH/MATERIAL: BLACK PAINTED STEEL
• MOTOR TYPE: CHRYSLER GEN III H�EMI
• PRODUCT TYPE: TRANSMISSION CROSSMEMBER
• TRANSMISSION: 8HP70 | 8HP90 | A727 | NAG1 | TKX CHEVY

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CROSSMEMBER HERE.
