ENGINE MOUNTS,LS SWAP,FRONT,67-69 F-BODY,68-74 X-BODY

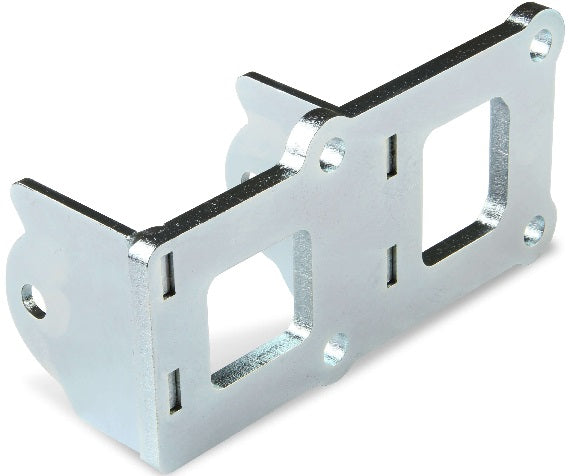

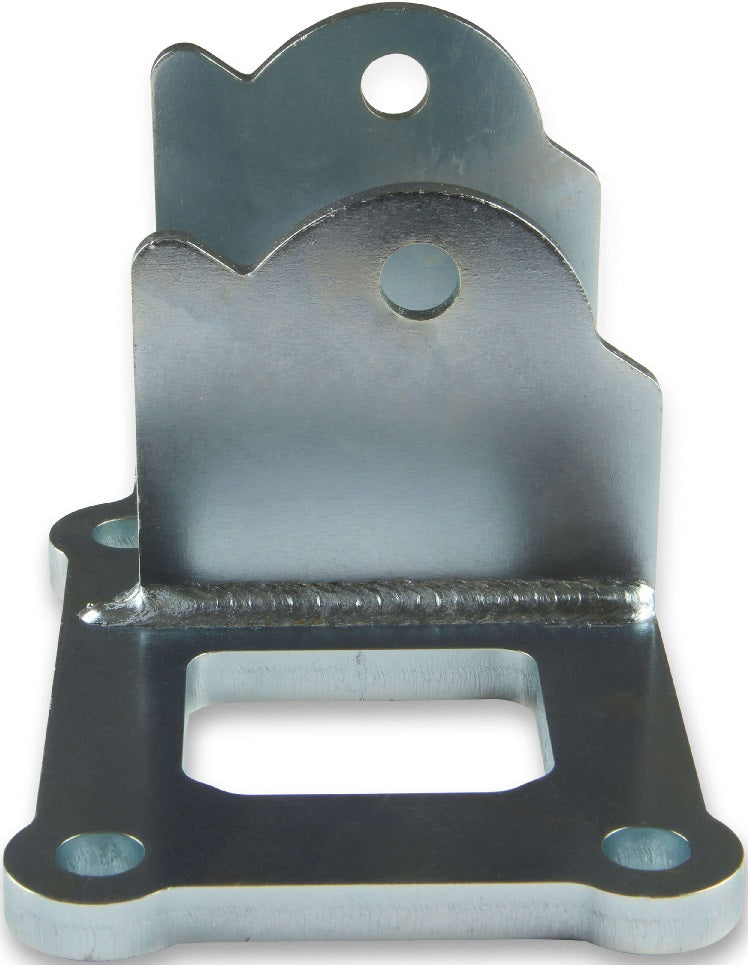

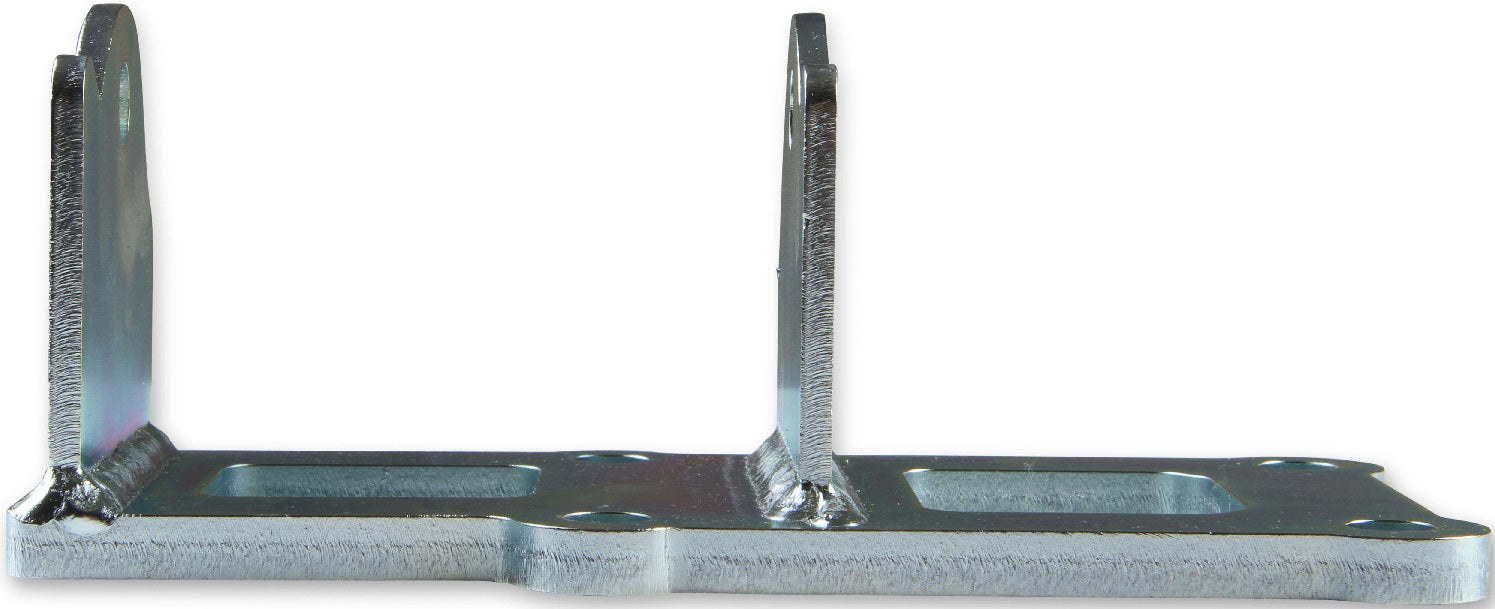

BRAND NEW HOOKER BLACKHEART ENGINE MOUNT BRACKETS, LS SWAP, COMPATIBLE WITH 1967-1969 GM F-BODY & 1968-1974 X-BODY

FACILITATES THE INSTALL OF ANY LS STYLE GM ENGINE INTO 1967-69 GM F-BODY & 1968-74 X-BODY. LS OIL PAN PART #302-2 CAN BE USED WITH THESE MOUNTS.

NOTE: THE OE CLAMSHELL MOUNTS & LONG HORIZONTALLY INSTALLED BOLTS (7/16" -14 X 5-1/4") USED TO SECURE THEM TO THE HOOKER BRACKETS ARE NOT INCLUDED WITH THIS KIT & WILL NEED TO BE PURCHASED SEPARATELY. IN ORDER TO ACHIEVE THE INTENDED FITMENT AND CLEARANCES OF THESE COMPONENTS. HIGHLY RECOMMENDED THAT NEW CLAMSHELL MOUNTS (HOLLEY PART #71221004HKR) BE INSTALLED AT TIME OF INSTALLATION.

NOTE: INTEGRAL PART OF THE COMPLETE HOOKER SWAP SYSTEM FOR THIS APPLICATION. COMPONENTS FEATURE UNIQUE DESIGN GEOMETRY THAT IS NOT COMPATIBLE WITH ANY OTHER BRAND OF TRANSMISSION CROSSMEMBER OR HEADERS.

COMPATIBLE WITH:

• PONTIAC:
• 1967-1969 FIREBIRD
• 1968-1971 ACADIAN
• 1971-1974 VENTURA
• CHEVROLET:
• 1967-1969 CAMARO
• 1968 CHEVY II
• 1969-1974 NOVA
• OLDSMOBILE:
• 1973-1974 OMEGA
• 1973-1974 APOLLO

FEATURES:

• SPECIFICALLY DESIGNED FOR BOLT-IN COMPATIBILITY WITH THE HOOKER TRANSMISSION SWAP COMPONENTS
• INSTALLED USING THE IMPROVED DESIGN 1972 & UP GM CLAMSHELL ENGINE MOUNTS. SUBFRAME ADAPTER PLATES ARE INCLUDED
• FULLY COMPATIBLE WITH HOLLEY LS SWAP OIL PANS AND ACCESSORY DRIVE BRACKETS
• PROVIDES AN ENGINEERED ENGINE/TRANSMISSION INCLINATION ANGLE THAT IS CRITICAL TO OBTAINING USABLE U-JOINT WORKING ANGLES (ESPECIALLY IN LOWERED VEHICLES)

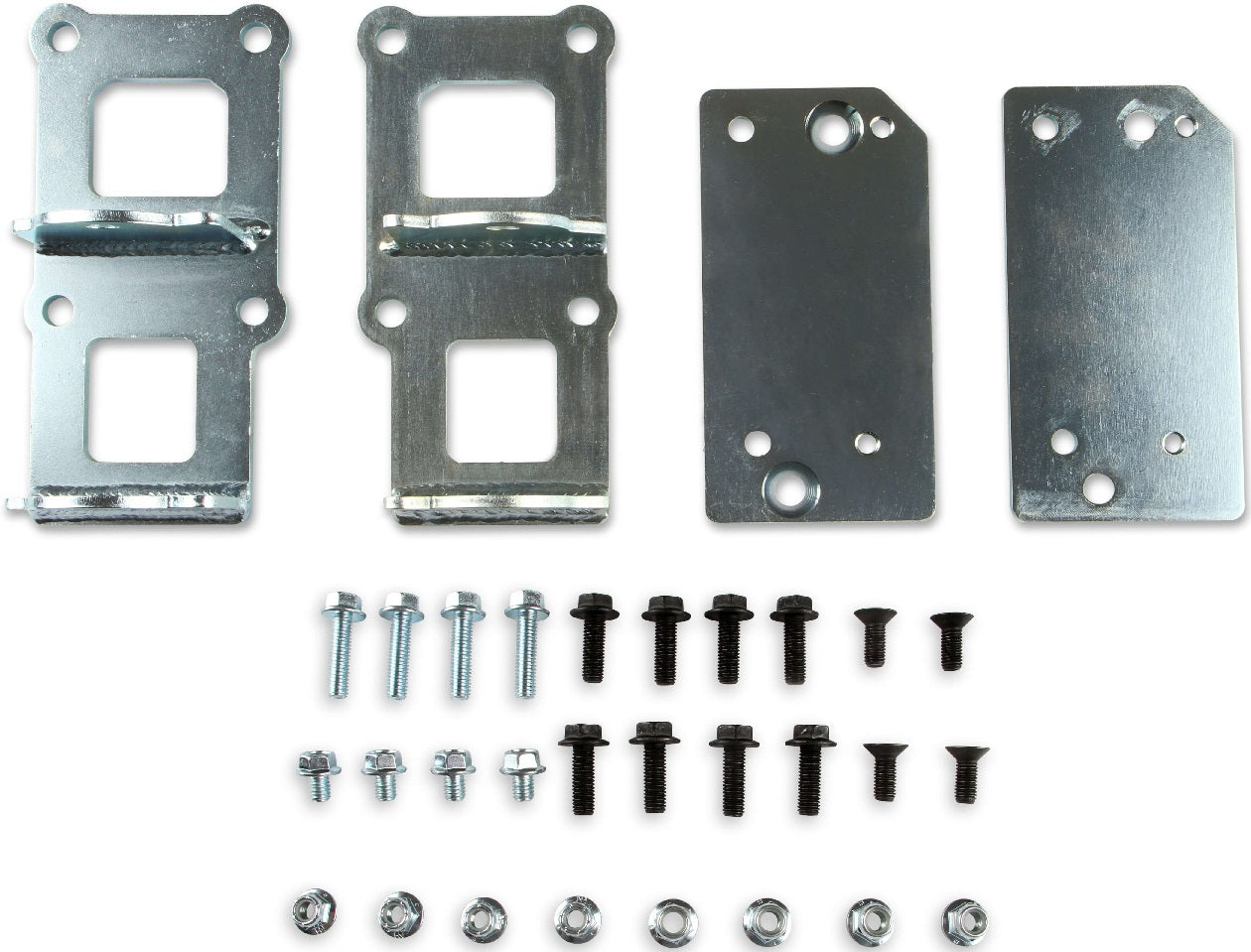

• MOUNTING HARDWARE INCLUDED

SPECS:

• APPLICATION: 67-69 F-BODY/ 68-74 X-BODY
• BRAND: HOOKER BLACKHEART
• ENGINE: GM SMALL BLOCK GEN III/IV (LS BASED)
• FINISH/MATERIAL: ZINC/STEEL
• K-MEMBER COMPATIBILITY: STOCK
• MOTOR TYPE: GM LS
• PRODUCT TYPE: ENGINE MOUNTS
• TRANSMISSION: 200R4 | 4L60E | 4L65E | 4L70E | 4L75E | 4L80E | 4L85E | 700R4 | POWERGLIDE | T56 GM | T56 MAGNUM GM | TH350 | TH400
• TYPE OF COMPONENT: ENGINE MOUNT BRACKET

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE BRACKETS HERE.
