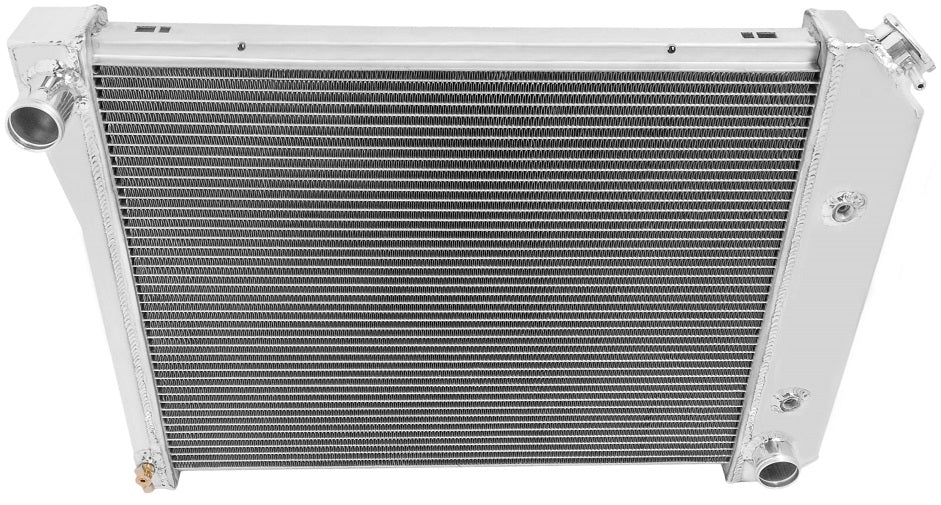

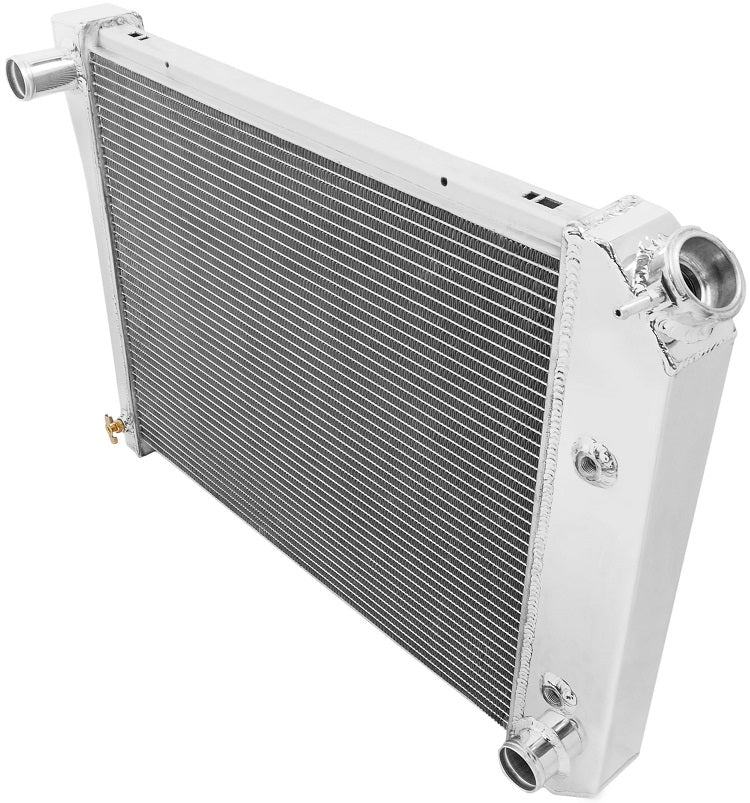

RADIATOR,ALUM,3 ROW,64-88 GM,BOP

BRAND NEW FROSTBITE ALUMINUM RADIATOR (3 ROW) FOR THE VEHICLES LISTED BELOW. PRODUCED BY HOLLEY PERFORMANCE PRODUCTS (PART #FB136).

HIGH-HORSEPOWER STREET CARS AND TRUCKS CAN BE A CHALLENGE TO KEEP COOL. A PROPER COOLING SYSTEM STARTS WITH THE RIGHT RADIATOR. ALUMINUM RADIATORS COOL MORE EFFECTIVELY AND WEIGH LESS THAN OLDER OEM STYLE BRASS UNITS. HOLLEY IS PROUD TO INTRODUCE ITS LATEST OFFERING - FROSTBITE PERFORMANCE COOLING PRODUCTS. OUR LINE OF PERFORMANCE ALUMINUM RADIATORS ARE AVAILABLE IN 2, 3, AND 4-ROW SIZES AS WELL AS AN EXTENSIVE OFFERING OF LS-SWAP SPECIFIC PLATFORM APPLICATIONS. WHEN IT COMES TO KEEPING YOUR RIDE COOL, MAKE IT FROSTBITE!

FITS:

• BUICK:
• 1973-1975 APOLLO
• 1977-1981 CENTURY
• 1980-1984 ELECTRA
• 1979-1987 REGAL
• 1964-1979 SKYLARK
• 1965-1985 LESABRE
• CHEVROLET:
• 1968-1973 CHEVELLE
• 1969-1979 NOVA
• 1970-1981 CAMARO
• 1971-1972 BISCAYNE
• 1971-1972 BROOKWOOD
• 1971-1972 KINGSWOOD
• 1971-1973 BEL AIR
• 1971-1985 IMPALA
• 1971-1986 CAPRICE
• 1972-1988 MONTE CARLO
• 1975-1976 LAGUNA
• 1975-1983 MALIBU
• 1975-1984 EL CAMINO
• GMC:
• 1979-1987 CABALLERO
• OLDSMOBILE:
• 1967-1981 CUTLASS
• 1979-1987 CUTLASS SUPREME
• 1979-1985 DELTA 88
• 1973-1979 OMEGA
• 1981-1983 98
• PONTIAC:
• 1968-1970 TEMPEST
• 1968-1981 LE MANS
• 1970-1976 FIREBIRD
• 1972-1976 VENTURA
• 1978-1979 PHOENIX
• 1979-1980 GRAND AM
• 1979-1981 GRAND LE MANS
• 1979-1987 GRAND PRIX
• 1980-1981 CATALINA
• 1980-1986 BONNEVILLE
• *FITS L6/V6/V8 (225/229/230/231/250/252/260/265/300/307/350) APPLICATIONS WITH 20-3/4" WIDE CORE*

SPECS:

• # OF PASSES: SINGLE
• COOLING ROW DIAMETER: 11/16"
• CORE DIMENSION: 17" X 20-3/4"
• CORE THICKNESS: 2.20"
• FLOW STYLE: CROSS FLOW
• HOSE LOCATION INLET: DRIVER
• HOSE LOCATION OUTLET: PASSENGER
• INLET SIZE: 1-1/2"
• MOUNTING TYPE: SADDLE MOUNT
• OUTLET SIZE: 1-1/2"
• OVERALL DIMENSION: 18-1/2" X 26"
• ROWS: 3
• TRANSCOOLER PROVISION: 1/2-20 STRAIGHT THREAD G 1/4

FEATURES:

• 100% TIG WELDED (BRAZED) SEAMS
• AIRCRAFT QUALITY ALUMINUM CORE, FITTINGS, AND TANKS (UP TO 30% WEIGHT SAVINGS)
• BILLET ALUMINUM FILLER NECK AND OEM STYLE BRASS PETCOCK
• MORE COOLING FINS PER INCH FOR MORE EFFICIENT COOLING
• CUSTOM FROSTBITE HIGH PERFORMANCE 16LB. RADIATOR CAP
• POLISHED TOP AND TANKS FOR CUSTOM SHOW APPEARANCE
• 3-ROW RADIATORS SUPPORTING APPLICATIONS W/ 450-750 HP

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS RADIATOR HERE.
