HEADER,SB MOPAR,1 5/8,67-74,LONG,3,CERAMIC COATED

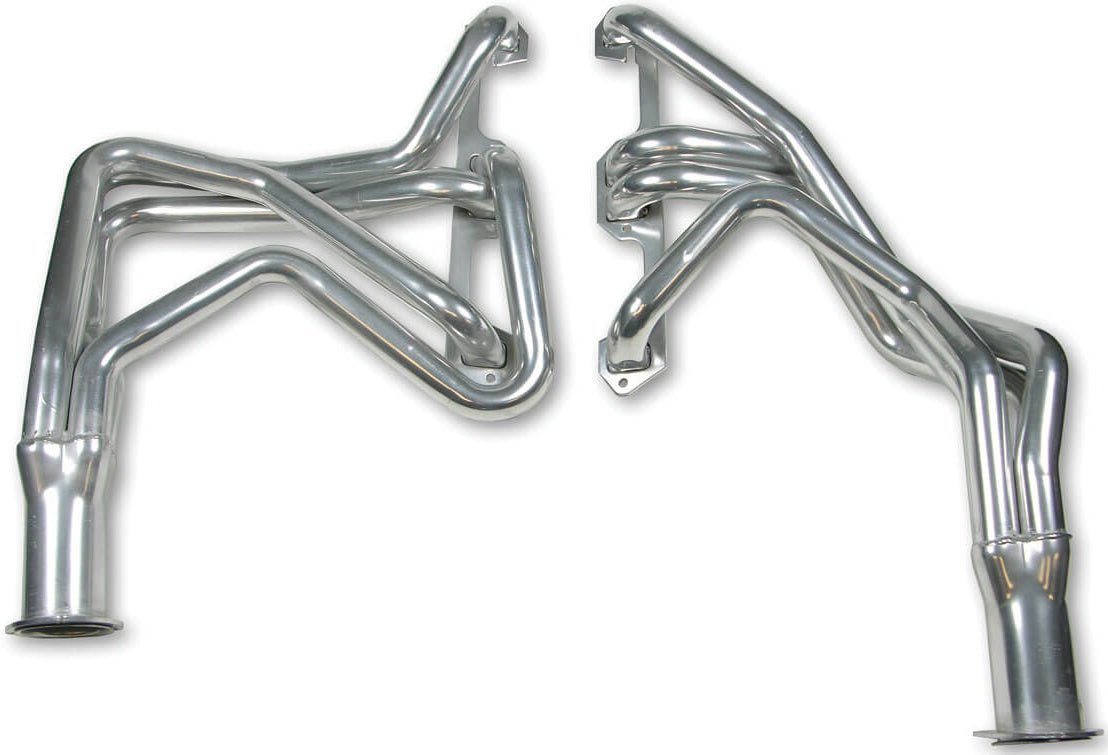

BRAND NEW PAIR OF FLOWTECH LONG TUBE HEADERS, 3" COLLECTORS, 1.625" TUBES, 273-360, COMPATIBLE WITH 1967-74 DODGE, PLYMOUTH & CHRYSLER VEHICLES

FLOWTECH HEADERS ARE PRECISION ENGINEERED & LEAK TESTED TO GET MAXIMUM PERFORMANCE & FUEL ECONOMY FROM YOUR ENGINE. EACH HEADER IS FORMED FROM SPECIALLY SELECTED .049 COLD ROLL FLASH CONTROLLED TUBING, & FEATURE EXCLUSIVE, THICK, MANDREL-FORMED POWER PLENUM COLLECTORS. ALL PORTS ARE PRECISELY FITTED & FINISHED W/ STURDY, LEAK-PROOF O-RINGED PORT SEALS, & INCLUDE ALL MOUNTING HARDWARE INCLUDING BOLTS, NUTS & PREMIUM GASKETS.

NOTE: BREAKING IN AN ENGINE WITH CERAMIC COATED HEADERS WILL RESULT IN DAMAGE TO THE COATING AND WILL VOID ALL WARRANTIES. CERAMIC COATED HEADERS REQUIRE SEVERAL HEAT CYCLES TO FULLY CURE BEFORE THEY WILL WITHSTAND EXTREME HEAT. FLOWTECH RECOMMENDS USING CAST IRON EXHAUST MANIFOLDS OR OLD HEADERS TO BREAK IN NEW ENGINES TO AVOID COATING DAMAGE. THE USE OF HEADER WRAPS CAN CAUSE THE HEADER TUBES TO CRACK OR RUST DUE TO EXCESSIVE HEAT AND MOISTURE BUILD-UP.

NOTE: MUST MODIFY STOCK EXHAUST TO RETAIN CATALYTIC CONVERTERS.

NOTE: WILL NOT FIT WITH A.I.R. INJECTION PUMP, OR VEHICLES WITH POWER STEERING.

NOTE: MAY BE NECESSARY TO RAISE THE AUTOMOTIVE COLUMN CROSS SHAFT LINKAGE BY ROTATING THE MOUNTING BRACKETS ON THE FRAME AND TRANSMISSION 180 DEGREES.

FITS:

• DODGE:
• 1967-74 CHALLENGER
• 1966-74 CHARGER
• 1967-74 CORONET
• 1967-74 DART
• 1970-74 DEMON
• 1967-74 SUPER BEE
• PLYMOUTH:
• 1967-74 BARRACUDA
• 1970-74 CUDA
• 1967-74 BELVEDERE
• 1970-74 DUSTER
• 1967-74 GTX,R/T
• 1970-74 ROADRUNNER
• 1967-74 SATELLITE
• CHRYSLER:
• 1967-69 VALIANT

FEATURES:

• FUEL ECONOMY FROM THE ENGINE
• LEAK TEST FOR MAX PERFORMANCE
• CERAMIC HEADERS
• RUST & CORROSION RESISTANCE
• MANDREL-FORMED POWER PLENUM
• LEAKPROOF O-RINGED PORT SEALS
• INCLUDES ALL MOUNTING HARDWARE

SPECS:

• COLLECTOR DIAMETER: 3"
• HEADER FINISH: SILVER METALLIC CERAMIC
• HEADER STYLE: LONG TUBE
• PRIMARY TUBE DIAMETER: 1.625"
• PRODUCT TYPE: HEADERS
• TUBE MATERIAL: MILD STEEL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THESE HEADERS HERE.
