CROSSMEMBER-BACK EXHAUST,67-72 K10/20,4WD,V8

CROSSMEMBER-BACK EXHAUST,67-72 K10/20,4WD,V8

FLM 817940

$859.95
$859.95
View full details

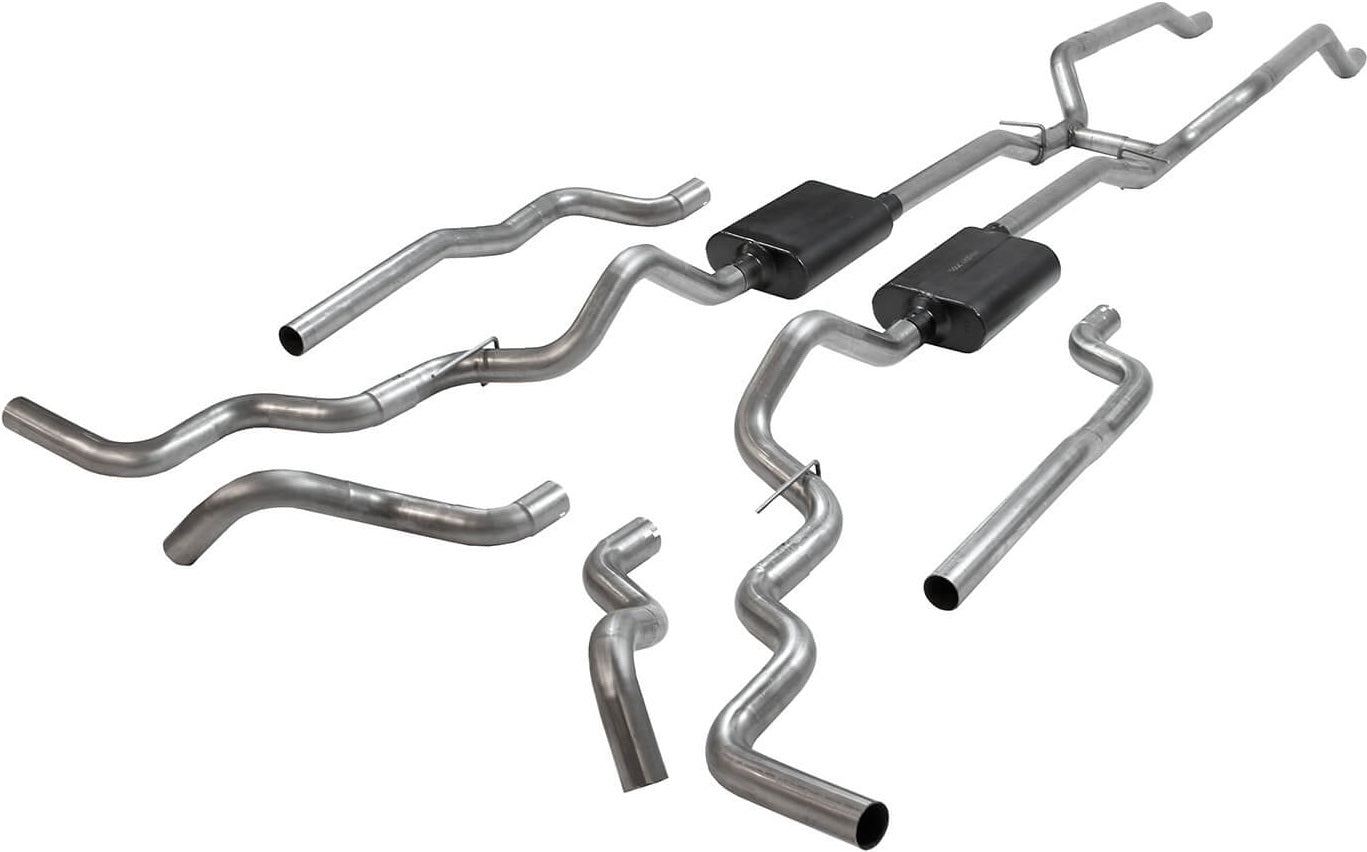

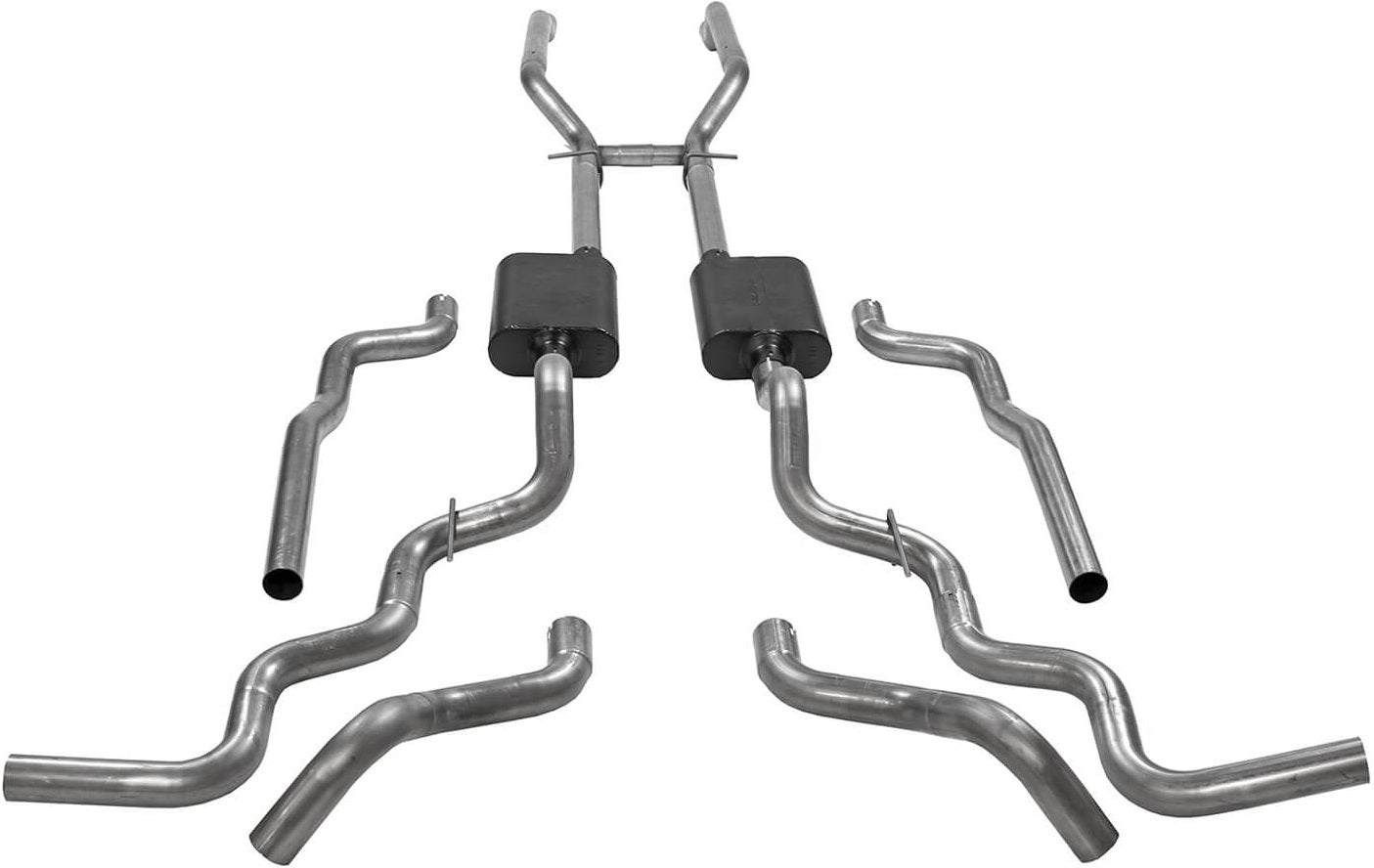

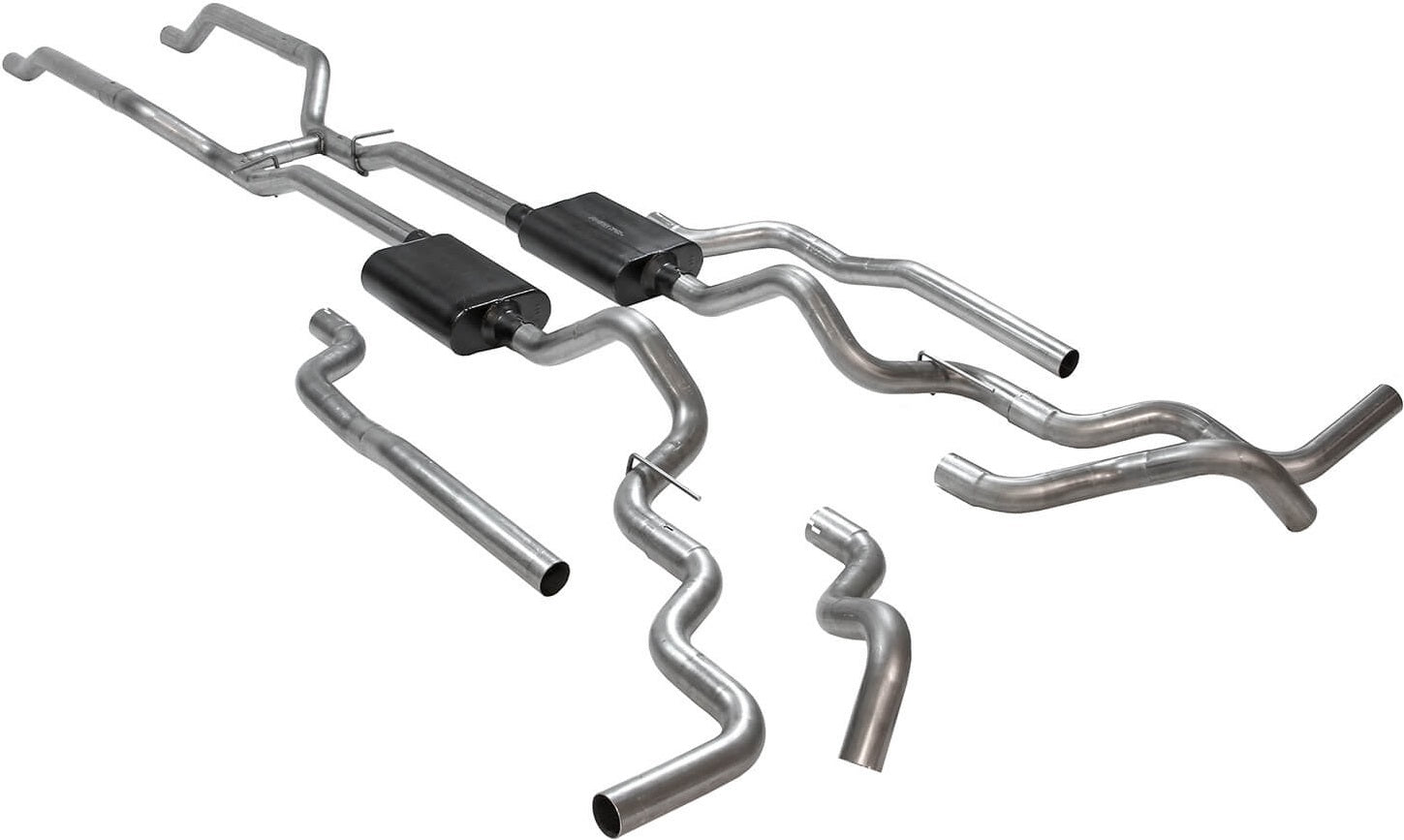

BRAND NEW FLOWMASTER AMERICAN THUNDER CROSSMEMBER-BACK DUAL EXHAUST SYSTEM, STAINLESS STEEL PIPES WITH BLACK MUFFLERS, COMPATIBLE WITH 1967-1972 CHEVROLET K10 PICKUP

FLOWMASTER AMERICAN THUNDER DUAL EXHAUST SYSTEM IS SPECIFICALLY DESIGNED FOR 1967-1972 CHEVROLET & GMC K10, K15/K1500, K20, AND K25/K2500 4WD TRUCKS WITH V8 ENGINES. STARTING AT THE CROSSMEMBER-BACK, THE EXHAUST COMES COMPLETE WITH A BUILT-IN H-PIPE CROSSOVER FOR BETTER EXHAUST SCAVENGING, ALL MANDREL-BENT 2.5" STAINLESS STEEL TUBING & PAIR OF SUPER 44 SERIES PERFORMANCE MUFFLERS.

COMES WITH A CHOICE OF 3 TAILPIPE EXITS (TURNDOWN BEHIND REAR TIRES, SIDE EXIT BEHIND REAR TIRES, OR STRAIGHT OUT THE BACK UNDER THE BUMPER). THE SYSTEM INCLUDES ALL HARDWARE NECESSARY FOR INSTALL.

NOTE: MANIFOLD DOWN PIPES & HEADER REDUCERS NOT INCLUDED.

NOTE: COMPATIBLE WITH LONG & SHORT BED TRUCKS.

COMPATIBLE WITH:

  • CHEVROLET:
    • 1967-1972 K10 PICKUP
    • 1967-1972 K20 PICKUP
  • GMC:
    • 1967-1972 K15/K1500 PICKUP
    • 1967-1972 K25/K2500 PICKUP

FEATURES:

  • CROSSMEMBER-BACK DESIGN WORKS WITH STOCK MANIFOLDS OR HEADERS
  • 16-GAUGE, 2.5" 409 STAINLESS STEEL PIPES
  • SUPER 44 MUFFLERS DELIVER INCREASED PERFORMANCE & AGGRESSIVE TO MODERATE SOUND
  • 3 DIFFERENT TAILPIPE EXIT OPTIONS
  • MANDREL-BENT PIPES MAXIMIZE EXHAUST FLOW
  • H-PIPE STYLE CROSSOVER HELPS EXHAUST GAS SCAVENGING & REDUCES DRONE

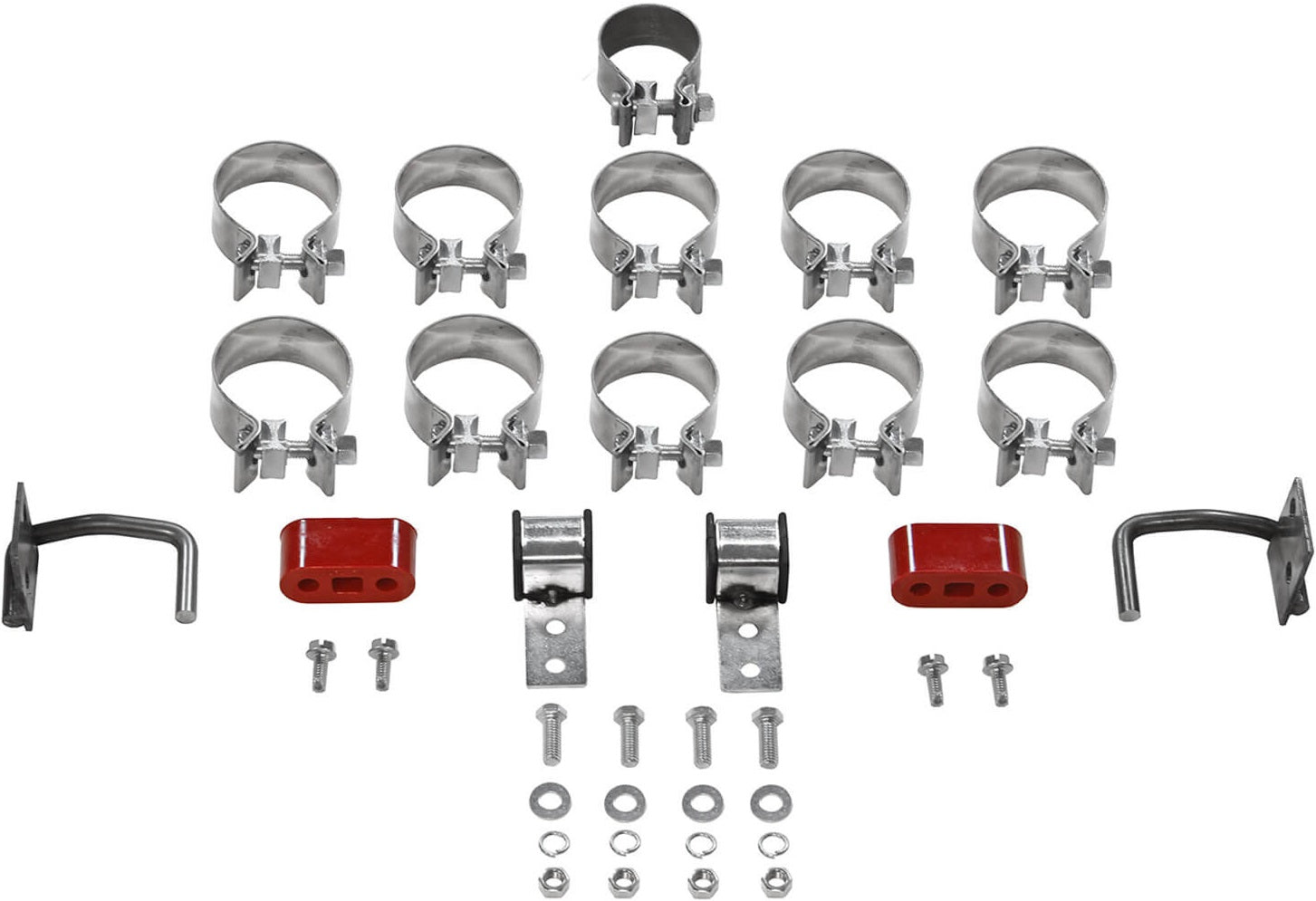

  • INCLUDES HANGERS & HARDWARE FOR INSTALLATION

SPECS:

  • EXIT POSITION: DOR/S
  • HEAT SHIELD: NO
  • MATERIAL: 409 STAINLESS STEEL
  • MOUNT TYPE: USES NEW HANGERS (INCLUDED)
  • MUFFLER BODY LENGTH: 13.5"
  • MUFFLER COLOR: BLACK
  • MUFFLER FINISH: PAINTED
  • MUFFLER INLET DIAMETER: 2.5"
  • MUFFLER INLET LOCATION: OFFSET
  • MUFFLER MATERIAL: 409S STAINLESS STEEL
  • MUFFLER OUTLET DIAMETER: 2.5"
  • MUFFLER OVERALL LENGTH: 19.5"
  • MUFFLER QUANTITY: 2
  • MUFFLER SERIES: SUPER 44
  • MUFFLER SHAPE: OVAL
  • MUFFLER TYPE: REFLECTION
  • PRODUCT TYPE: EXHAUST SYSTEM
  • SINGLE DUAL: DUAL
  • SOUND LEVEL: AGGRESSIVE / MODERATE
  • SYSTEM TYPE: CROSSMEMBER-BACK
  • TIP STYLE: NOT INCLUDED
  • TUBING DIAMETER: 2.5"
  • TUBING MATERIAL: 409S STAINLESS STEEL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS EXHAUST SYSTEM HERE.
