HEADER,5.4,1 5/8,05-10 F150,SHORTY,CERAMIC COATED

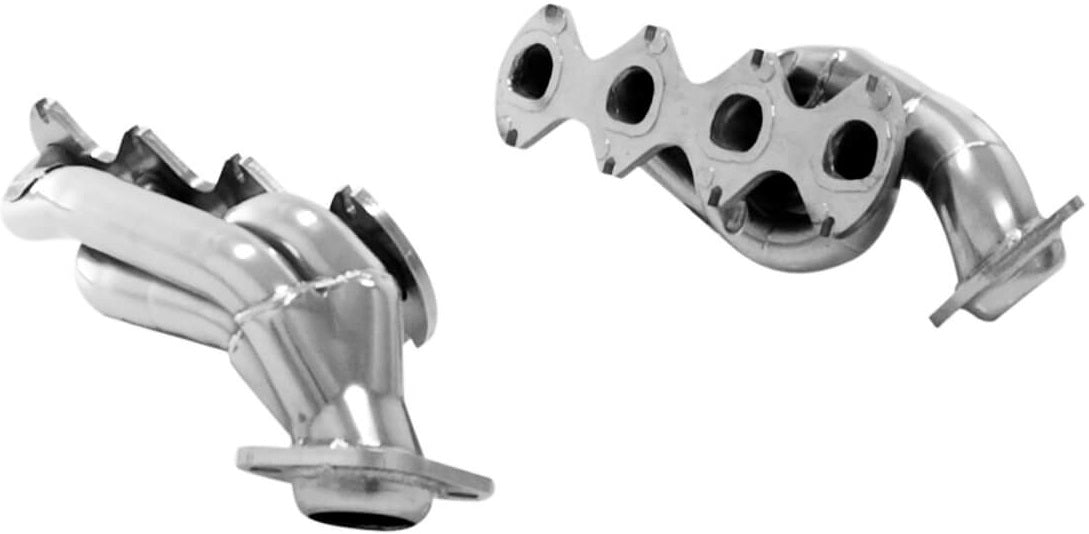

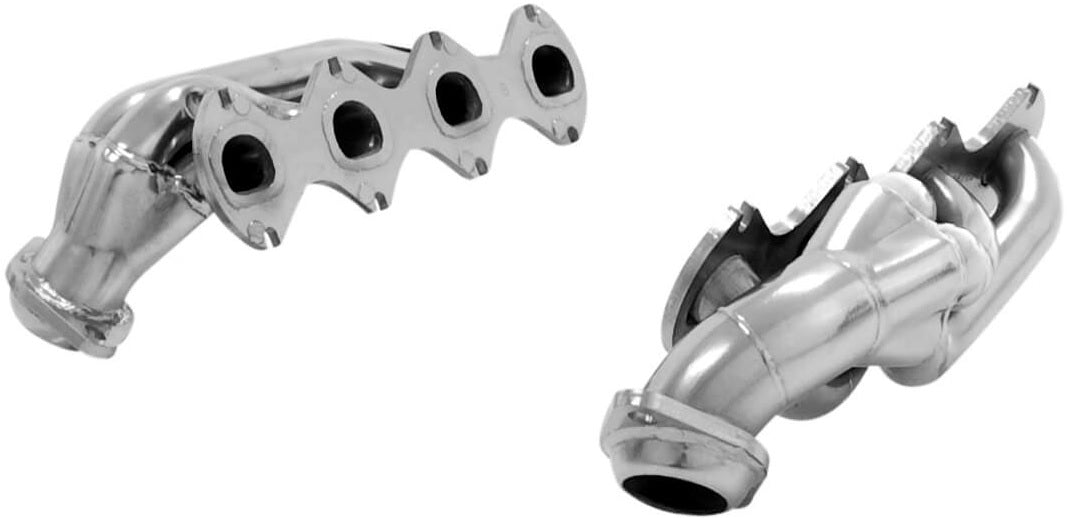

BRAND NEW FLOWMASTER SCAVENGER SERIES ELITE SHORTY HEADERS, SILVER CERAMIC, 1-5/8" TUBE DIAMETER, 3/8" STOCK FLANGE, COMPATIBLE WITH 2004-2010 F-150 5.4L V8

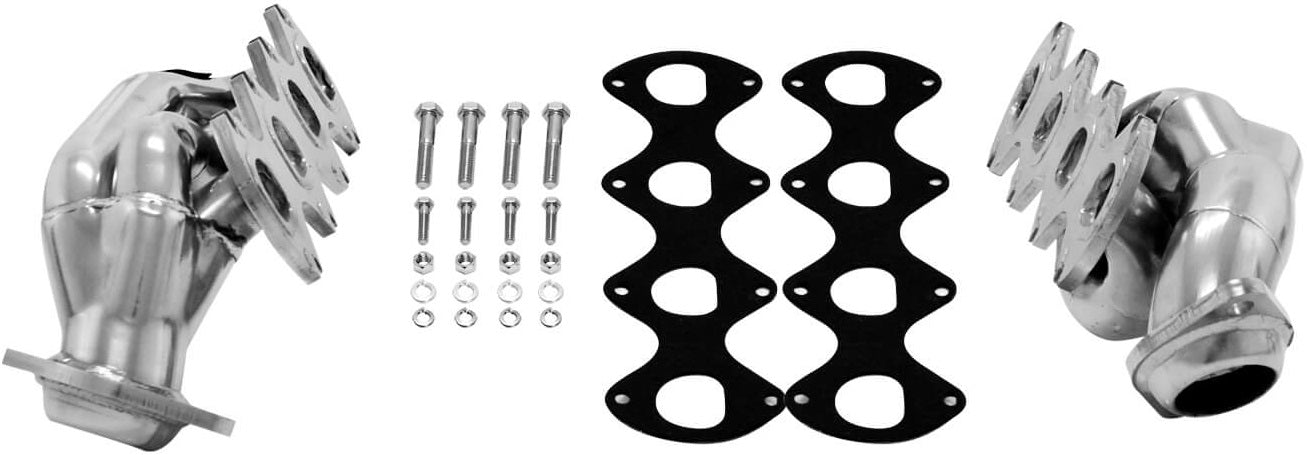

FLOWMASTER SCAVENGER SERIES ELITE SHORTY HEADERS ARE DESIGNED TO REPLACE THE RESTRICTIVE FACTORY MANIFOLDS. MANUFACTURED FROM STAINLESS STEEL & CERAMIC COATED FOR MAX DURABILITY. FEATURES 1-5/8" PRIMARY TUBES, 3/8" THICK LASER CUT FLANGES & FACTORY COLLECTOR CONNECTIONS, ENSURING A DIRECT-FIT, LEAK FREE INSTALL. BENEFITS INCLUDE IMPROVED THROTTLE RESPONSE, POWER & ENGINE EFFICIENCY. INCLUDES GASKETS & NECESSARY HARDWARE FOR EASY INSTALL.

NOTE: THIS PRODUCT HAS BEEN GRANTED A CALIFORNIA AIR RESOURCES BOARD (CARB) EXEMPTION, AN E.O. NUMBER, OR IS A DIRECT OR CONSOLIDATED REPLACEMENT PART. IT IS 50-STATE LEGAL, PER THE APPLICATION GUIDE. CARB EO# D-698.

COMPATIBLE WITH:

• FORD:
• 2004-2010 F-150

FEATURES

• 3/8" THICK LASER CUT FLANGES
• DYNO TUNED FOR MAXIMUM PERFORMANCE
• HIGH TEMPERATURE CERAMIC COATING
• STAINLESS STEEL CONSTRUCTION

SPECS:

• ATTACHMENT METHOD: STOCK FLANGE
• AUTOMOTIVE ITEM GRADE: HIGH PERFORMANCE PART
• BOLTS/STUDS INCLUDED: YES
• CARB (CALIFORNIA) COMPLIANT: YES
• CARB EO#: D-698
• COLLECTOR INCLUDED: YES
• ENGINE: MODULAR V8
• HEADER FINISH: SILVER CERAMIC
• HEADER FLANGE THICKNESS: 3/8"
• HEADER SERIES: SCAVENGER SERIES ELITE
• HEADER STYLE: SHORTY
• INLET PORT SHAPE: D-PORT
• MATERIAL: STAINLESS STEEL
• OUTLET DIAMETER: 2.5"
• PRIMARY TUBE DIAMETER: 1.625"
• PRODUCT TYPE: HEADERS
• REDUCERS INCLUDED: NO
• TUBE GAUGE: 16
• TUBE LENGTHS: UNEQUAL LENGTH

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE HEADERS HERE.
