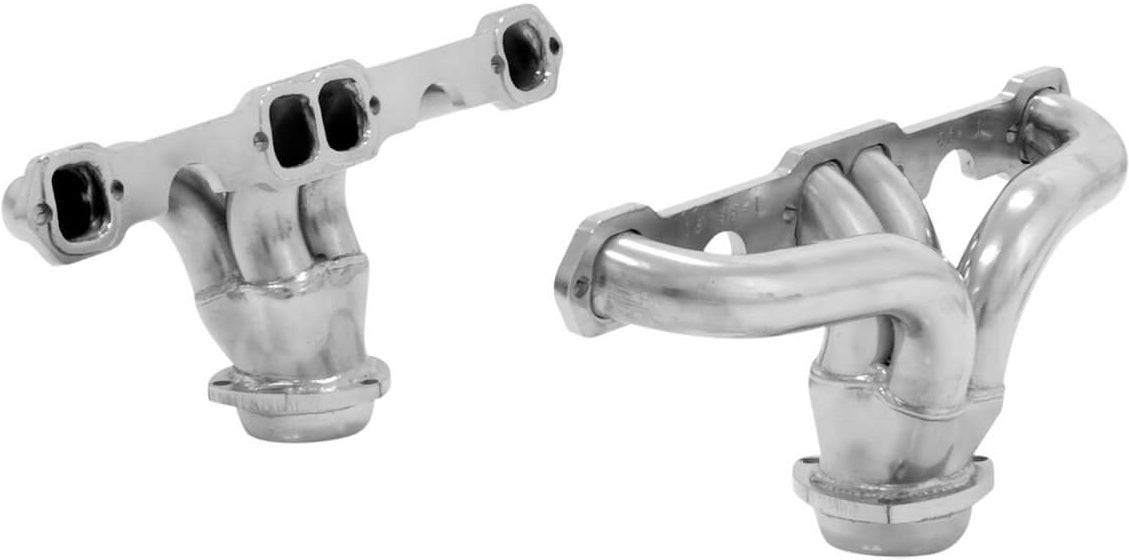

HEADER,SBC,1 5/8,57-74 CORVETTE,SHORTY,CERAMIC COATED

BRAND NEW FLOWMASTER SCAVENGER SERIES ELITE SHORTY HEADERS, UNIVERSAL CENTER DUMP, SILVER CERAMIC, 1-5/8" TUBE DIAMETER, 3/8" BALL & SOCKET FLANGE, 327/350 V8, COMPATIBLE WITH 1957-1974 CORVETTE

FLOWMASTER SCAVENGER SERIES ELITE SHORTY HEADERS ARE DESIGNED TO REPLACE RESTRICTIVE FACTORY CAST IRON MANIFOLDS. MANUFACTURED FROM STAINLESS STEEL & CERAMIC COATED FOR MAXIMUM DURABILITY. FEATURES 1-5/8" PRIMARY TUBES & 3/8" THICK LASER CUT FLANGES. BENEFITS INCLUDE IMPROVED THROTTLE RESPONSE, POWER & ENGINE EFFICIENCY. INCLUDE GASKETS & NECESSARY HARDWARE FOR EASY INSTALL.

NOTE: MAY REQUIRE ADDITIONAL ALTERNATOR MOUNTING BRACKETS. FITS APPLICATIONS WITHOUT AIR INJECTION ONLY.

NOTE: THIS PRODUCT HAS BEEN GRANTED A CALIFORNIA AIR RESOURCES BOARD (CARB) EXEMPTION, AN E.O. NUMBER, OR IS A DIRECT OR CONSOLIDATED REPLACEMENT PART. IT IS 50-STATE LEGAL, PER THE APPLICATION GUIDE. CARB EO# D-698.

COMPATIBLE WITH:

• CHEVROLET:
• 1964-1972 CORVETTE

FEATURES

• 3/8" THICK LASER CUT FLANGES
• DYNO TUNED FOR MAXIMUM PERFORMANCE
• HIGH TEMPERATURE CERAMIC COATING
• STAINLESS STEEL CONSTRUCTION

SPECS:

• ATTACHMENT METHOD: BALL & SOCKET FLANGE
• AUTOMOTIVE ITEM GRADE: HIGH PERFORMANCE PART
• BOLTS/STUDS INCLUDED: YES
• CARB (CALIFORNIA) COMPLIANT: YES
• CARB EO#: D-698
• COLLECTOR INCLUDED: YES
• COLOR/FINISH: SILVER CERAMIC
• ENGINE: SBC
• HEADER FINISH: SILVER CERAMIC
• HEADER FLANGE THICKNESS: 3/8"
• HEADER SERIES: SCAVENGER SERIES ELITE
• HEADER STYLE: BLOCK HUGGER
• INLET PORT SHAPE: ROUND
• MATERIAL: STAINLESS STEEL
• OUTLET DIAMETER: 2.5"
• PRIMARY TUBE DIAMETER: 1-5/8"
• PRODUCT TYPE: HEADERS
• REDUCERS INCLUDED: NO
• TUBE GAUGE: 16
• TUBE LENGTHS: UNEQUAL LENGTH
• CALIFORNIA PROPOSITION 65 CHEMICAL NAME: CHROMIUM (HEXAVALENT COMPOUNDS) | NICKEL (METALLIC)
• CALIFORNIA PROPOSITION 65 REQUIRED: YES

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THESE HEADERS HERE.
