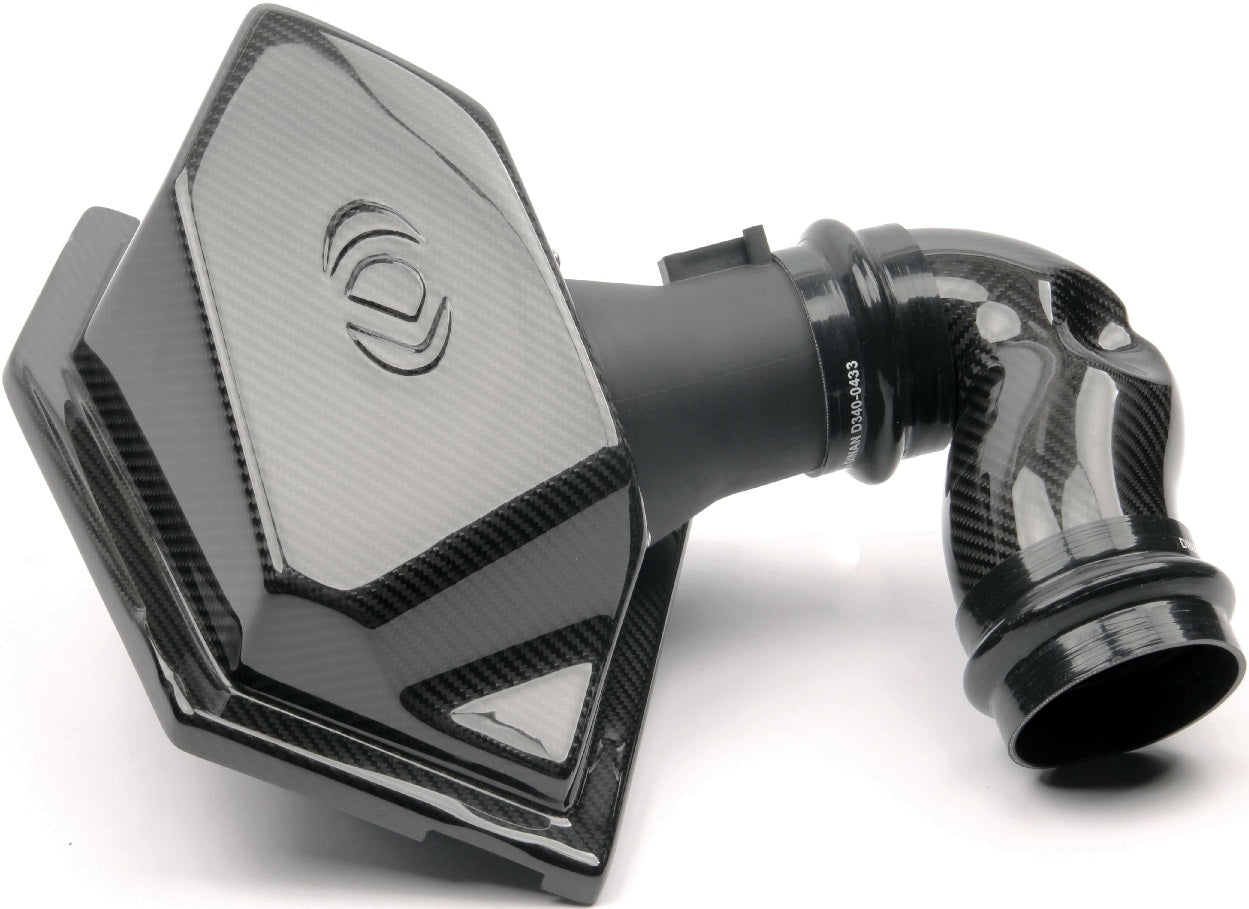

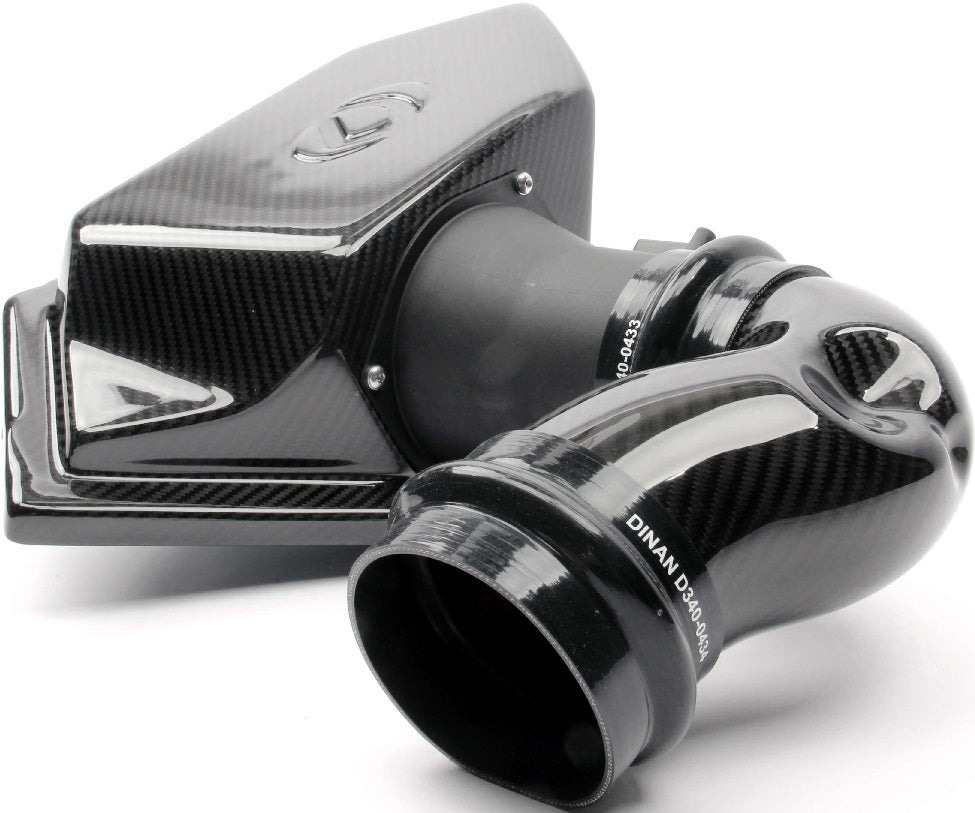

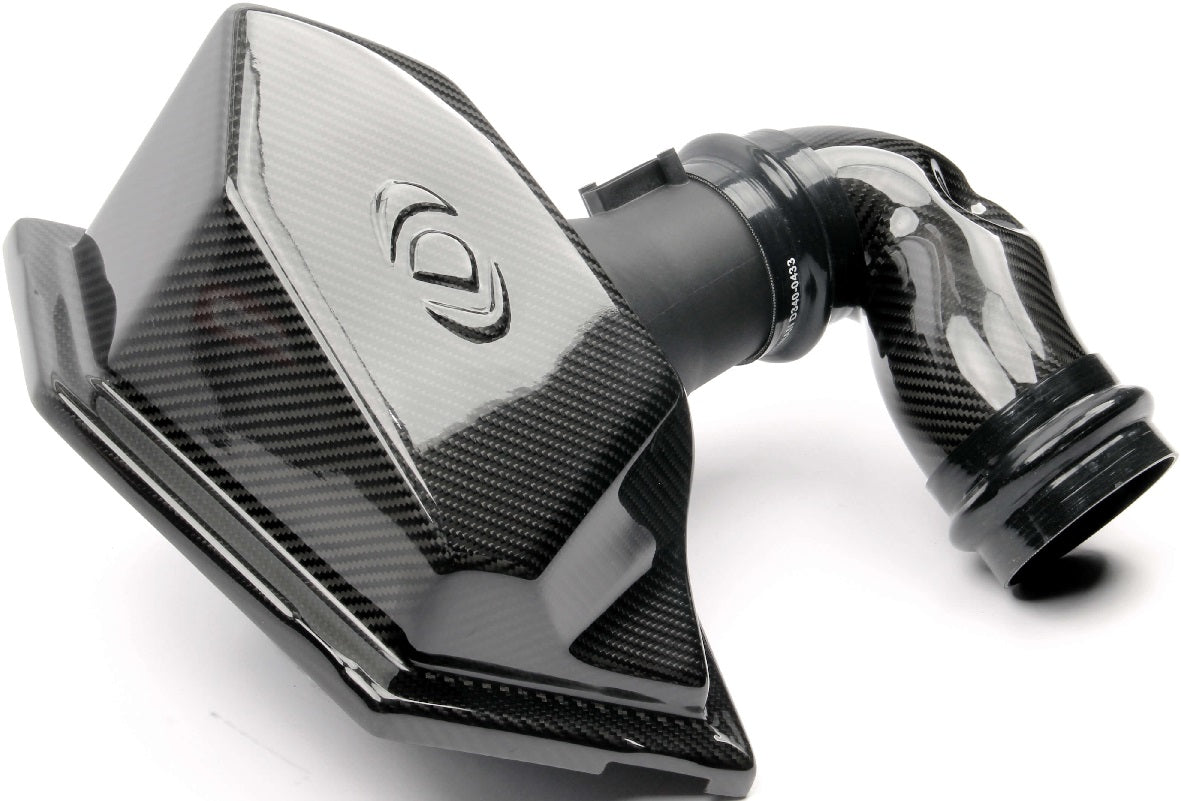

COLD AIR INTAKE,CF,15-20 BMW M2,F2X,F3X

BRAND NEW DINAN COLD AIR INTAKE, CARBON FIBER INTAKE TUBES, COMPATIBLE WITH 2016-2018 BMW 340I

FOLLOWING IN THE FOOTSTEPS OF THE IMMENSELY POPULAR & HERALDED INTAKE FOR THE BMW N55 ENGINE, THE NEXT GENERATION OF 6 CYLINDER INTAKE TAKES THE SAME PATH TO SUCCESS. IMPROVE UPON THE FACTORY DESIGN BY INCREASING FLOW VIA A LARGER AIRBOX & FILTER ELEMENT THEREBY IMPROVING THROTTLE RESPONSE & LESSENING THE STRAIN ON THE TURBOCHARGER FOR MAX EFFICIENCY.

COUPLED WITH MAINTAINING DINAN STANDARD PRACTICE OF UTILIZING A SEALED SYSTEM TO ENSURE AS MUCH COLD OUTSIDE AIR AS POSSIBLE IS EMPLOYED DINAN ENGINEERS FOCUSED THEIR ATTENTION ON THE INTAKE PIPE ITSELF WHERE NUMEROUS IMPROVEMENTS COULD BE MADE. IN FACTORY CONFIGURATION, THE INTAKE TUBE COMES COMPLETE WITH BAFFLING & SMALL HELMHOLTZ CHAMBER TO REDUCE UNWANTED SOUND.

THESE FEATURES ALSO CAUSE A MORE TURBULENT AIRFLOW PATH THAT ROBS THE FACTORY SYSTEM OF POTENTIAL POWER. THESE 2 SPECIFIC DETAILS ARE DIAMETRICALLY OPPOSED TO OUR INTENDED MARKET DESIRES SO THE REMOVAL OF THESE FEATURES WAS PARAMOUNT. THROUGH NUMEROUS ITERATIONS, A CARBON FIBER INTAKE TUBE WAS DEVELOPED THAT ELIMINATED FLOW DISRUPTIONS & ALLOWED THE NATURAL SOUND OF AN UNIMPEDED INTAKE TRACT TO SING.

ALL TOLD THIS THOROUGH METHODOLOGY OF DESIGN ALLOWS THE DINAN CARBON FIBER COLD AIR INTAKE FOR THE B58 ENGINE TO ELICIT GAINS OF 15 HP & 13 TRQ 6000 RPM ON A COMPLETELY STOCK VEHICLE.

COMPATIBLE WITH:

• BMW:
• 2016-2018 340I
• 2016-2018 340I XDRIVE
• 2017-2019 340I GT XDRIVE
• 2017-2020 440I
• 2017-2020 440I XDRIVE
• 2017-2020 440I GRAN COUPE
• 2017-2020 440I XDRIVE GRAN COUPE
• 2017-2019 M240I
• 2017-2019 M240I XDRIVE

FEATURES

• MORE POWER: + 15 HP AT 6000 RPM & + 13 LB-FT AT 6000 RPM (+ 13 WHP & + 11 WTQ) WITHOUT ADDITIONAL MODIFICATIONS
• SPORTIER SOUND
• IMPROVED THROTTLE RESPONSE
• LARGER VOLUME AIR BOX (30% LARGER THAN STOCK) THAT COMPLETELY SEALS FOR MAX INSULATION FROM POWER ROBBING HEAT
• 34% INCREASE IN FILTER AREA (STOCK: 76.3" SQUARED, DINAN: 102.1" SQUARED) FOR OPTIMUM FLOW
• OPTIMIZED CARBON FIBER INTAKE TUBE
• FREE FLOWING INJECTION MOLDED AIR MASS METER HOUSING (8% LARGER THEN STOCK)

SPECS:

• AIR BOX INCLUDED: YES
• MAX HP GAIN: 15 AT 6000 RPM
• MAX TORQUE (LB-FT) GAIN: 13 AT 6000 RPM
• PRODUCT TYPE: COLD AIR INTAKE

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS AIR INTAKE HERE.
