9" FORD 52" REAR END & BRAKES,11" DISCS

9" FORD 52" REAR END & BRAKES,11" DISCS

CUR UHR52INX-K2

$2,299.99
$2,299.99
This item requires an additional shipping fee of $60 over standard shipping.
View full details

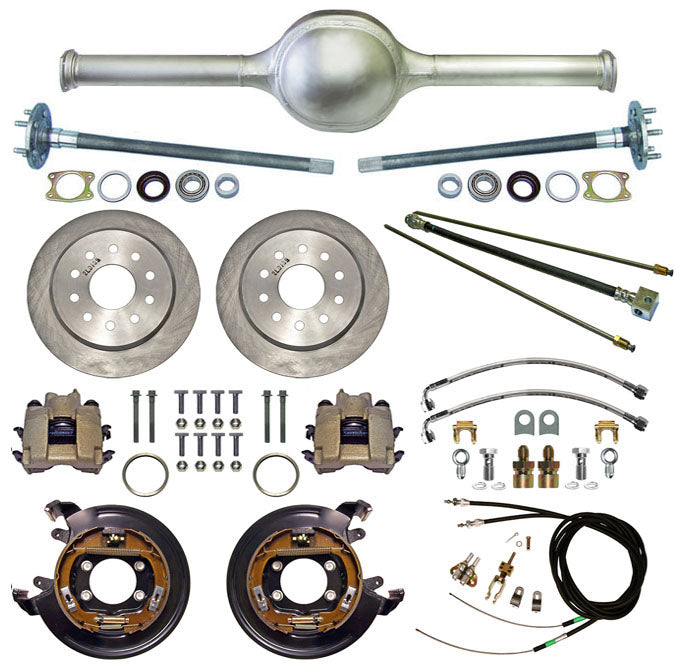

  • CURRIE ENTERPRISES 9" FORD 52" REAR END WITH 31 SPLINE AXLES WITH CURRIE DISC BRAKE KIT, PARKING BRAKE CABLE KIT, AND BRAKE LINE KIT FOR THE APPLICATIONS BELOW (PART #UHR52INX-K2). THESE ARE IDEAL FOR STREET RODS, HOT RODS, RAT RODS, RESTORATIONS, AND NUMEROUS OTHER PROJECTS.

    • INCLUDES:

    • CURRIE 9-PLUS ROUND-BACK REAR END WITH 31 SPLINE AXLES (CURRIE #CE-UHR52INX)
      • 9-PLUS ROUNDBACK HOUSING
      • 31 SPLINE PERFORMANCE AXLE PACKAGE
      • 52" OVERALL WIDTH:
        • 52" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
        • WE ALSO HAVE THESE REAR ENDS AVAILABLE IN SEVERAL OTHER WIDTHS
      • HOUSING IS BUILT HOUSING-CENTERED WITH A 0.94" PINION OFFSET
      • STEEL 3" DIAMETER TUBES
      • SMALL WEBBED-STYLE CENTER EASILY ACCEPTS TRIANGULATED 4-LINK BRACKETS
      • THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DO NOT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS
      • AXLES INCLUDE:
        • BOTH 5 X 4 1/2" AND 5 X 4 3/4" WHEEL BOLT PATTERNS
        • INCLUDES ONE SET OF 7/16" STUDS AND ONE SET OF 1/2" STUDS
        • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
        • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
      • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO", WHICH FIT THE CURRIE BRAKES PERFECTLY
    • CURRIE 11" DISC BRAKE KIT (CURRIE PART #CE-6012E6):
      • CURRIE BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
      • THESE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS
      • BRAKE KIT INCLUDES:
        • 0.50" THICK X 11.00" O.D. SOLID ROTORS WITH HATS
          • FEATURING BOTH 5 X 4 1/2" AND 5 X 4 3/4" BOLT PATTERNS
        • SINGLE PISTON BRAKE CALIPERS WITH PADS
        • BACKING PLATE / CALIPER MOUNTING BRACKET PLATES WITH DRUM-STYLE PARKING BRAKE ASSEMBLIES INSTALLED
        • NECESSARY BOLTS, NUTS, AND REGISTERS TO INSTALL THE BRAKING SYSTEM ON BOTH REAR WHEELS
    • PARKING BRAKE CABLE KIT:
      • CONNECTS TO THE CURRIE PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION
    • FLEXLINE KIT:
      • STEEL BRAIDED BRAKE LINES, BANJO FITTINGS & BOLTS, AND CHASSIS FITTINGS TO CONNECT THE CALIPERS TO THE HARD LINES
      • ALSO INCLUDES WELD-ON LINE TABS TO INSTALL ON YOUR REAR END
    • HARD LINE KIT:
      • STEEL HARD BRAKE LINE TUBING TO CONNECT THE CHASSIS FITTINGS TO THE INCLUDED RUBBER HOSE
      • RUBBER HOSE CONNECTS THOSE HARD LINES TO THE LINE ON THE FRAME
      • NOTE: TUBING BENDING IS GENERALLY NECESSARY FOR THE INSTALLATION OF THESE LINES
