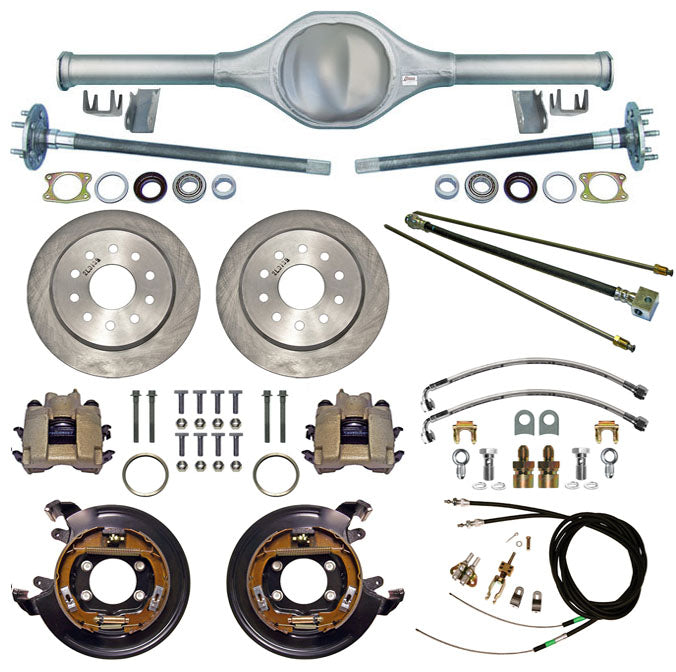

87-95 JEEP WRANGLER REAR&BRAKES,11"DISCS

FITS:

• JEEP:
  • 1987-1995 YJ WRANGLER, INCLUDING SAHARA, RENEGADE, LAREDO, RIO GRANDE

INCLUDES:

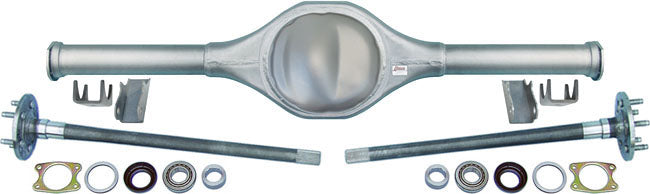

• CURRIE 9-PLUS NOTCH-BACK REAR END WITH 31 SPLINE AXLES (CURRIE #CE-JYJ8795X)
  • 9-PLUS NOTCHBACK HEAVY DUTY HOUSING
  • 31 SPLINE PERFORMANCE AXLE PACKAGE
  • BUILT TO THE STOCK OVERALL WIDTH (60") AND PINION OFFSET SPECS
    • 60" IS MEASURED OUTSIDE-OF-AXLE-FLANGE TO OUTSIDE-OF-AXLE-FLANGE, IN OTHER WORDS, WHERE THE WHEEL BOLTS ON TO WHERE THE WHEEL BOLTS ON
  • HEAVY DUTY 2 1/4" WIDE LEAF SPRING PADS AND STOCK STYLE SHOCK MOUNTS ARE INCLUDED, BUT NOT INSTALLED ON THE UNIT SO THAT YOU MAY SET THE CORRECT PINION ANGLE OF THE UNIT BEFORE WELDING THEM ON
  • NO TRAC BAR MOUNTING PROVISIONS ON HOUSING; TRAC BAR MAY BE REMOVED
  • HOUSING INCLUDES ALL 3RD MEMBER STUDS INSTALLED
  • THESE ARE 9" FORD CENTER SECTIONS, SO THEY DO REQUIRE A 9" FORD 3RD MEMBER (SOMETIMES REFERRED TO AS A CHUNK); IF YOU DO NOT CURRENTLY HAVE ONE, WE DO OFFER THEM IN SEVERAL RATIOS
  • AXLES INCLUDE:
    • AXLES ARE DRILLED FOR BOTH 5 X 4 1/2" AND 5 X 5 1/2" WHEEL BOLT PATTERNS
    • WHEEL STUDS INSTALLED IN THE STOCK 5 X 4 1/2" PATTERN
    • 1/4" THICK HEAVY-DUTY BEARING RETAINER PLATES
    • TAPERED TIMKEN STYLE WHEEL BEARINGS PRESSED ON
  • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO", WHICH FIT THE CURRIE BRAKES PERFECTLY

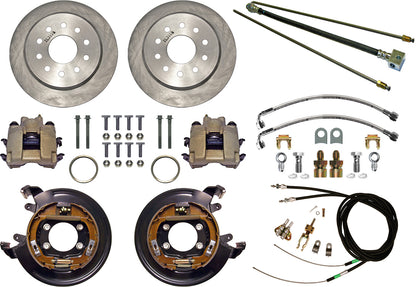

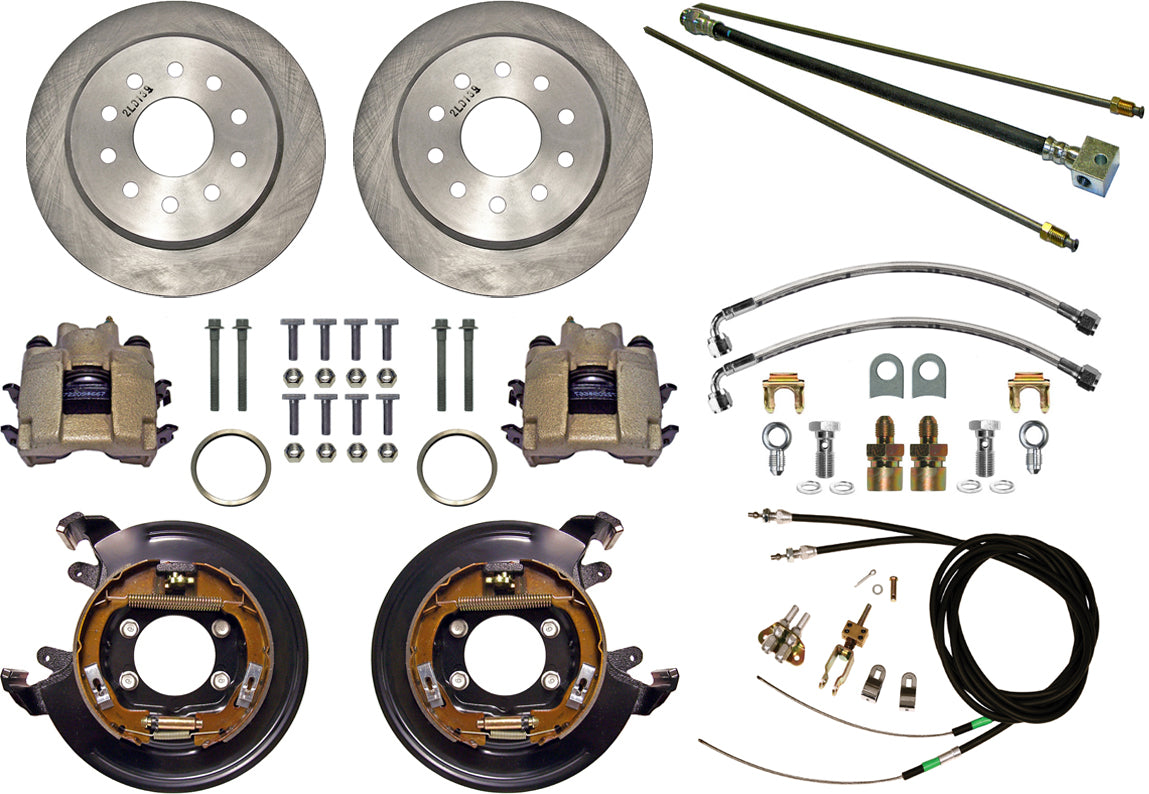

• CURRIE 11" DISC BRAKE KIT (CURRIE PART #CE-6012E6):
  • CURRIE BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
  • THESE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS
  • BRAKE KIT INCLUDES:
    • 0.50" THICK X 11.00" O.D. SOLID ROTORS WITH HATS
      • FEATURING BOTH 5 X 4 1/2" AND 5 X 4 3/4" BOLT PATTERNS
    • SINGLE PISTON BRAKE CALIPERS WITH PADS
    • BACKING PLATE / CALIPER MOUNTING BRACKET PLATES WITH DRUM-STYLE PARKING BRAKE ASSEMBLIES INSTALLED
    • NECESSARY BOLTS, NUTS, AND REGISTERS TO INSTALL THE BRAKING SYSTEM ON BOTH REAR WHEELS
• PARKING BRAKE CABLE KIT:
  • CONNECTS TO THE CURRIE PARKING BRAKE ASSEMBLIES, THEN COMES TOGETHER TO JOIN THE STOCK CABLE BEHIND THE TRANSMISSION
• FLEXLINE KIT:
  • STEEL BRAIDED BRAKE LINES, BANJO FITTINGS & BOLTS, AND CHASSIS FITTINGS TO CONNECT THE CALIPERS TO THE HARD LINES
  • ALSO INCLUDES WELD-ON LINE TABS TO INSTALL ON YOUR REAR END
• HARD LINE KIT:
  • STEEL HARD BRAKE LINE TUBING TO CONNECT THE CHASSIS FITTINGS TO THE INCLUDED RUBBER HOSE
  • RUBBER HOSE CONNECTS THOSE HARD LINES TO THE LINE ON THE FRAME
  • NOTE: TUBING BENDING IS GENERALLY NECESSARY FOR THE INSTALLATION OF THESE LINES
