QUICK CHANGE REAR END ASSEMBLY,STREET ROD,STB,10"CHAMP,56",W/AXLES

QUICK CHANGE REAR END ASSEMBLY,STREET ROD,STB,10"CHAMP,56",W/AXLES

604-3790

$3,499.99
$3,499.99
This item requires an additional shipping fee of $50 over standard shipping.
View full details

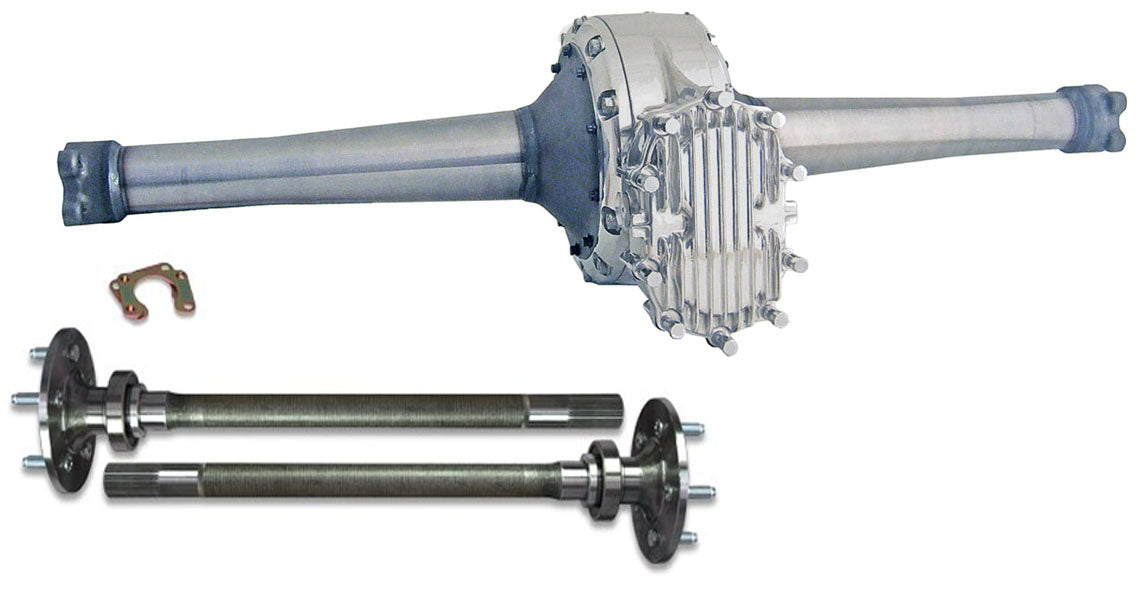

  • BRAND NEW WINTERS STEEL TUBE & BELL CHAMP QUICK CHANGE REAR END WITH FLANGED AXLES (PART #604-3790; WINTERS PART #SR2525STB AND SR2980-56").  THIS REAR END MEASURES 56" AXLE FLANGE TO AXLE FLANGE.
  • NOSTALGIA HAS NEVER BEEN BETTER!  THIS AMAZING ASSEMBLY SEPARATES EXTRAORDINARY FROM ORDINARY!  WINTERS STEEL TUBE & BELL CHAMP ADAPTER QUICK CHANGE INCLUDES A SPRINT CAR CENTER SECTION WITH A 10", 4.12 RING & PINION, WINTERS TRACK DIFFERENTIAL (SEE DIAGRAM BELOW), HEAT-TREATED LOWER SHAFT, INNER TUBE SEALS AND A SET OF 10 SPLINE, STRAIGHT CUT GEARS.  INCLUDES STOCK APPEARING FLANGED 31 SPLINE AXLES THAT WILL ACCOMMODATE AFTER-MARKET DISC OR STOCK BRAKES.  NOTE: WHEN ASSEMBLED, THE AXLE WILL BE 1/2?â?ó?»?????»???? LONGER ON THE LEFT SIDE.
  • THESE REAR ENDS ARE A FANTASTIC ADDITION TO ALMOST ANY STREET ROD, HOT ROD, OR RESTORATION PROJECT
  • FEATURES:
    • WINTERS 10", 4.12 RING & PINION
    • HEAT-TREATED LOWER SHAFT

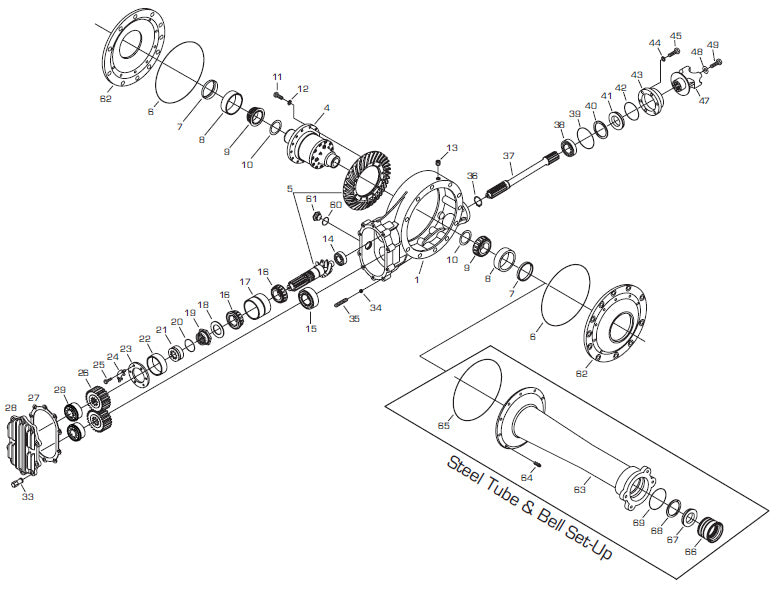

    • WINTERS TRACK DIFFERENTIAL, WHICH YOU CAN SEE IN A DIAGRAM BELOW
      • THIS IS AN ALL GEAR DRIVE DIFFERENTIAL. THIS UNIQUE RACE PROVEN GEAR DESIGN AUTOMATICALLY SENSES WHEEL SPIN AND DELIVERS POSITIVE TRACTION.  THIS DESIGN IS VERY SMOOTH AND VERY DURABLE
    • 31 SPLINE FLANGED AXLES WITH BEARINGS, BEARING RETAINERS, AND STUDS
      • DRILLED FOR USE WITH 5 X 4.5" AND 5 X 4.75" BOLT PATTERNS
    • INNER TUBE SEALS
    • 1310 SERIES FRONT PINION YOKE
    • INCLUDES A SET OF WINTERS 10 SPLINE GEARS;  THE DEFAULT GEAR SET IS #8501, WHICH HAS 21 SPLINE UPPER AND LOWER GEARS, YIELDING A 4.12 GEAR RATIO.  IF YOU WOULD LIKE TO GET A DIFFERENT SET INSTEAD, JUST LET US KNOW WHEN ORDERING, AS WE HAVE THE COMPLETE LINE IN STOCK
    • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO":
    • THIS REAR END COMES ASSEMBLED WITH THE TUBES INSTALLED
    • SHIPS VIA UPS IN 2 SEPARATE BOXES BY REMOVING THE SIDE BELLS WITH THE TUBES INSTALLED TO SHIP IN ONE BOX AND SHIPPING THE COMPLETE CENTER SECTION IN ANOTHER BOX

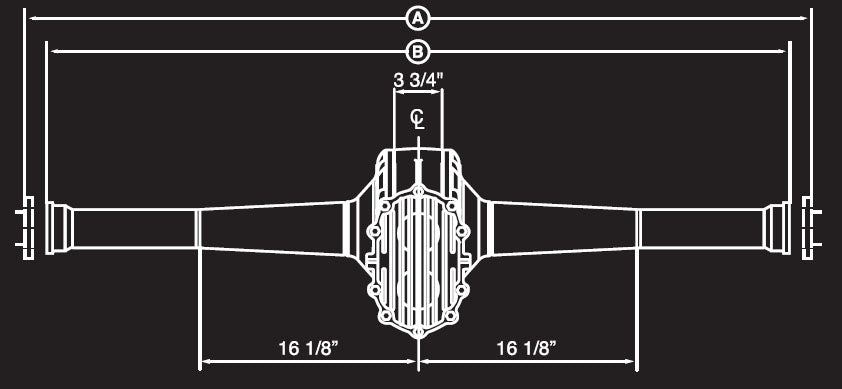

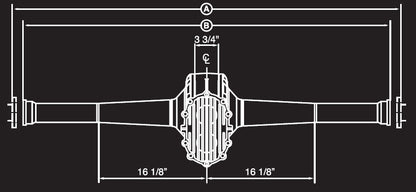

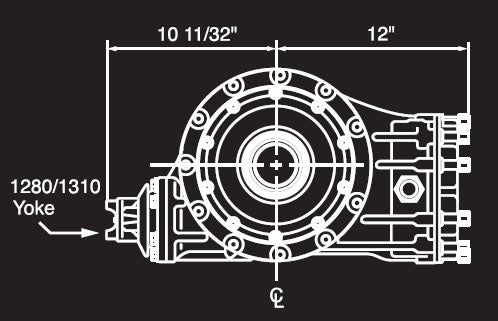

    • YOU CAN SEE MANY DIFFERENT DIAGRAMS TO THE RIGHT WITH ALL THE DIMENSIONS OF THIS REAR END
