QUICK CHANGE REAR END ASSEMBLY,STREET ROD,10" CHAMP,60",HD.

QUICK CHANGE REAR END ASSEMBLY,STREET ROD,10" CHAMP,60",HD.

604-3770

$2,699.99
$2,699.99
This item requires an additional shipping fee of $50 over standard shipping.
View full details

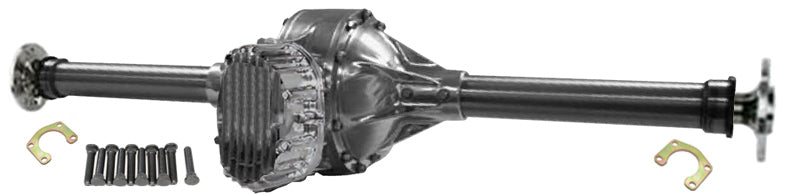

  • BRAND NEW WINTERS CHAMPIONSHIP HEAVY-DUTY QUICK CHANGE REAR END WITH FLANGED AXLES (PART #604-3770; WINTERS PART #SR2525HD AND SR2980-60").  THIS REAR END MEASURES 60" AXLE FLANGE TO AXLE FLANGE.
  • THE WINTERS CHAMPIONSHIP HEAVY-DUTY QUICK CHANGE REAR END FEATURES A HEAVY-DUTY CENTER WITH A 10", 4.12 RING & PINION, DEEP DISH STYLE GEAR COVER, HEAT TREATED LOWER SHAFT, WINTERS TRACK DIFFERENTIAL (SEE BELOW), AXLE SEALS AND A SET OF 10 SPLINE, STRAIGHT CUT GEARS.  INCLUDES STOCK APPEARING FLANGED 31 SPLINE AXLES THAT WILL ACCOMMODATE AFTER-MARKET DISC OR STOCK BRAKES.
  • THESE REAR ENDS ARE A FANTASTIC ADDITION TO ALMOST ANY STREET ROD, HOT ROD, OR RESTORATION PROJECT
  • FEATURES:
    • WINTERS 10", 4.12 RING & PINION
    • DEEP DISH STYLE GEAR COVER
    • HEAT-TREATED LOWER SHAFT
    • WINTERS TRACK DIFFERENTIAL, WHICH YOU CAN SEE PICTURED BELOW
      • VIRTUALLY UNBREAKABLE, PARALLEL GEAR DESIGN AUTOMATICALLY SENSES WHEEL SPIN AND DELIVER POSITIVE TRACTION
    • 31 SPLINE FLANGED AXLES WITH BEARINGS, BEARING RETAINERS, AND STUDS
      • DRILLED FOR USE WITH 5 X 4.5" AND 5 X 4.75" BOLT PATTERNS
    • AXLE SEALS
    • 1310 SERIES FRONT PINION YOKE
    • INCLUDES A SET OF WINTERS 10 SPLINE GEARS;  THE DEFAULT GEAR SET IS #8501, WHICH HAS 21 SPLINE UPPER AND LOWER GEARS, YIELDING A 4.12 GEAR RATIO.  IF YOU WOULD LIKE TO GET A DIFFERENT SET INSTEAD, JUST LET US KNOW WHEN ORDERING, AS WE HAVE THE COMPLETE LINE IN STOCK
    • THE AXLE FLANGES ON THIS REAR END ARE THE BIG BEARING FORD (NEW STYLE), ALSO KNOWN AS "TORINO":
    • THIS REAR END COMES ASSEMBLED WITH THE TUBES INSTALLED
    • SHIPS VIA UPS IN 2 SEPARATE BOXES BY REMOVING THE SIDE BELLS WITH THE TUBES INSTALLED TO SHIP IN ONE BOX AND SHIPPING THE COMPLETE CENTER SECTION IN ANOTHER BOX

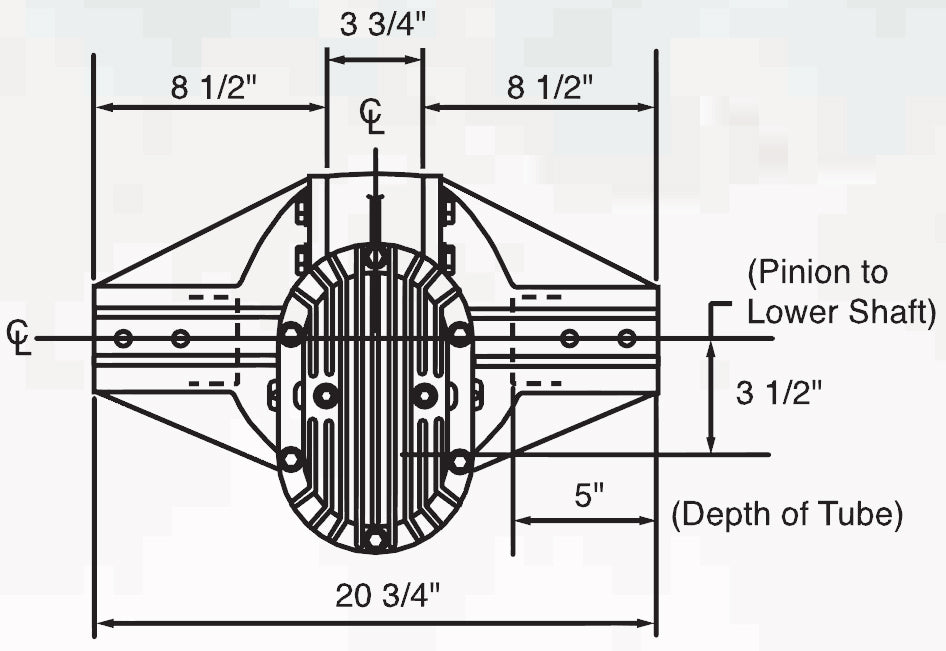

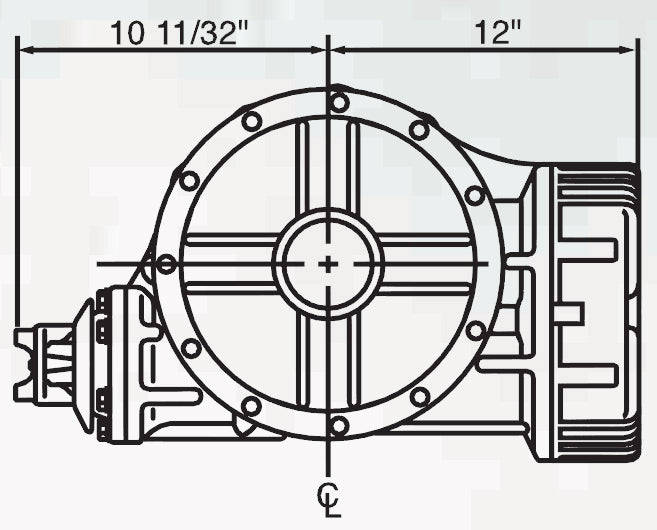

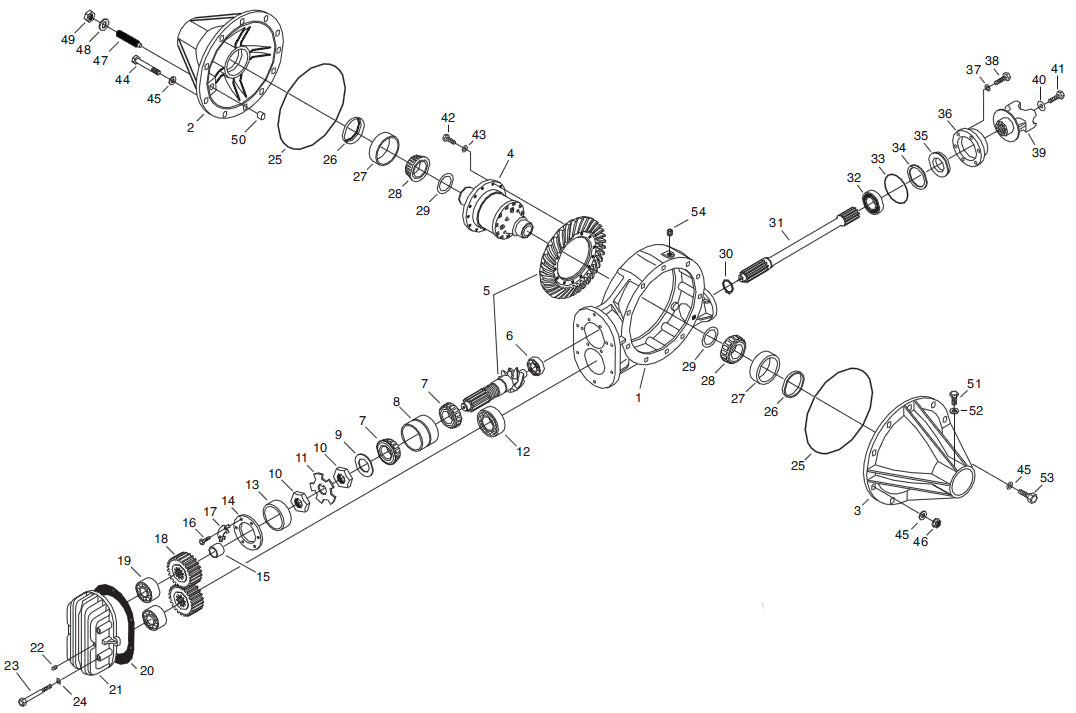

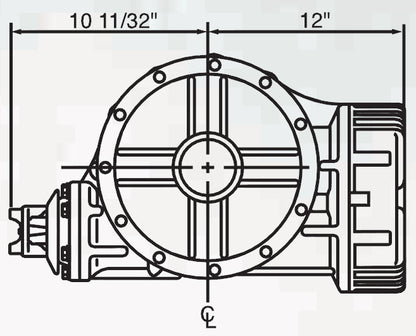

    • YOU CAN SEE MANY DIFFERENT DIAGRAMS TO THE RIGHT WITH ALL THE DIMENSIONS OF THIS REAR END
