HEADER,BBC,1 3/4",75-91 GM TRUCKS,SUV,LONG TUBE,3",CERAMIC HOT COATED

HEADER,BBC,1 3/4",75-91 GM TRUCKS,SUV,LONG TUBE,3",CERAMIC HOT COATED

440-2448

$449.99
$449.99
This item requires an additional shipping fee of $20.00 over standard shipping.
View full details

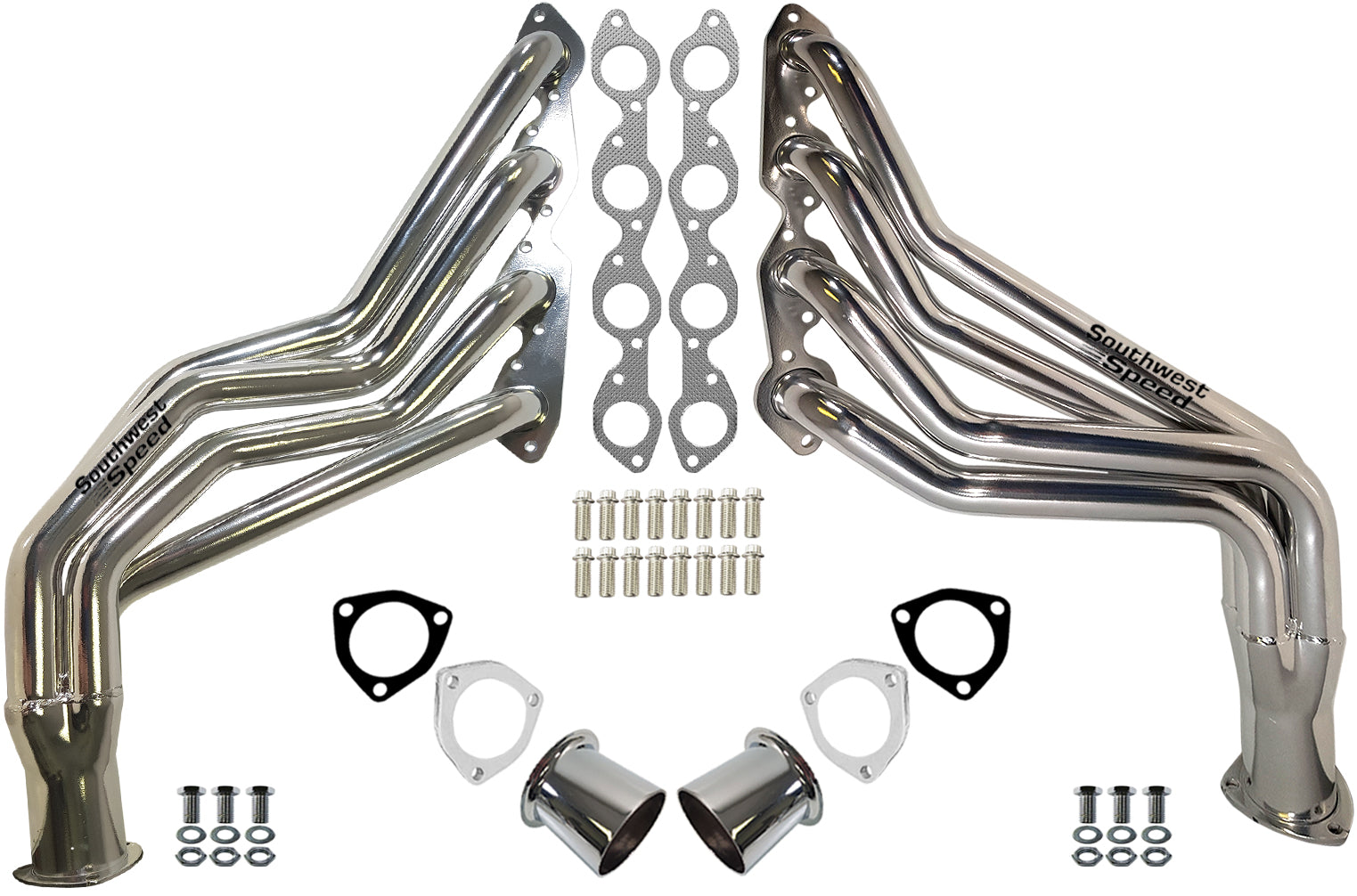

  • BRAND NEW SOUTHWEST SPEED CERAMIC HOT COATED PERFORMANCE LONG TUBE HEADERS THAT ARE DIRECT FIT FOR 1975-1991 GM TRUCKS WITH BIG BLOCK CHEVY 396-454 CU. IN. ENGINES (SWS PART #440-2448).

  • THIS PAIR OF SOUTHWEST SPEED PERFORMANCE LONG TUBE HEADERS OFFER AN IMMEDIATE INCREASE IN PERFORMANCE BY ELIMINATING BACKPRESSURE, IMPROVING EXHAUST FLOW, AND BUILDING MORE HORSEPOWER. THE CONSISTENT TUBING DIAMETER CONTRIBUTES TO THE SMOOTH AIR FLOW AND GREATER EXHAUST VELOCITY OF THESE HEADERS. THESE HEADERS ARE A DIRECT REPLACEMENT FOR 1975-1991 CHEVY & GMC TRUCKS, SUBURBANS, BLAZERS, AND JIMMYS WITH BIG BLOCK CHEVY 396-454 CU. IN. ENGINES. THESE HEADERS ARE GROUND PARALLEL WITH .380" FLANGES ON THE CYLINDER HEAD SURFACE, AND FEATURE 1 3/4" PRIMARY TUBES WITH 3" COLLECTORS, COMPLETE WITH HEADER BOLTS AND GASKETS AND REDUCER BOLTS AND GASKETS. INCLUDES A PAIR OF 2 1/2" REDUCERS TO COMPLETE THE INSTALLATION. CERAMIC HOT COATING (CHC) IS A HEAT RESISTANT, CERAMIC COATING APPLIED TO THE OUTSIDE OF THE HEADER. THIS COATING WILL REFLECT HEAT, WHICH HELPS RETAIN MORE HEAT WITHIN THE HEADER TUBE, WHILE SIMULTANEOUSLY SPEEDING UP THE EXHAUST FLOW. NOT ONLY WILL THIS COATING HELP YOU MAKE MORE HORSEPOWER, IT ALSO KEEPS YOUR HEADERS RUST-FREE, LOOKING GREAT, AND LASTING LONGER (WHEN PROPERLY MAINTAINED). IF YOU ARE LOOKING FOR A QUALITY FINISH FOR YOUR HEADERS, THIS IS IT. GOOD TO 1300 DEGREES.

  • WE STRONGLY RECOMMEND THAT YOU REFER TO OUR COMPATIBILITY LIST TO MAKE SURE THESE HEADERS FIT YOUR VEHICLE.

    • FEATURES:

    • PERFORMANCE LONG TUBE HEADERS
    • 1 3/4" PRIMARIES TO THE 3" COLLECTORS
    • 2 1/2" REDUCERS
    • MORE PERFORMANCE
    • INCREASES HORSEPOWER & TORQUE
    • BETTER FUEL MILEAGE
    • GREAT CHOICE TO REPLACE CAST IRON EXHAUST MANIFOLDS
    • ENHANCES THE LOOKS OF THE ENGINE COMPARTMENT
    • INCLUDES GASKETS AND MOUNTING HARDWARE
    • CERAMIC HOT COATED TO RESIST EARLY RUST & CORROSION

    DIRECT FIT APPLICATIONS:

    • GM TRUCKS WITH BIG BLOCK CHEVY 396-454 CU. IN. ENGINES:
      • CHEVY:
        • 1/2 TON TRUCKS:
          • 1975-1987 1/2 TON TRUCKS 2WD
          • 1975-1981 1/2 TON TRUCKS 4WD
        • 3/4 TON TRUCKS:
          • 1975-1987 3/4 TON TRUCKS 2WD
          • 1975-1981 3/4 TON TRUCKS 4WD
        • 1 TON TRUCKS:
          • 1975-1987 1 TON TRUCKS 2WD
        • BLAZER:
          • 1975-1987 K5 BLAZER 2WD
          • 1975-1981 K5 BLAZER 4WD
        • SUBURBAN:
          • 1975-1991 SUBURBAN 2WD
          • 1975-1981 SUBURBAN 4WD
      • GMC:
        • 1/2 TON TRUCKS:
          • 1975-1987 1/2 TON TRUCKS 2WD
          • 1975-1981 1/2 TON TRUCKS 4WD
        • 3/4 TON TRUCKS:
          • 1975-1987 3/4 TON TRUCKS 2WD
          • 1975-1981 3/4 TON TRUCKS 4WD
        • 1 TON TRUCKS:
          • 1975-1987 1 TON TRUCKS 2WD
        • JIMMY:
          • 1975-1987 JIMMY 2WD
          • 1975-1981 JIMMY 4WD
        • SUBURBAN:
          • 1975-1991 SUBURBAN 2WD
          • 1975-1981 SUBURBAN 4WD

    IMPORTANT NOTES & EXCLUSIONS:

    • 1. MUST MODIFY STOCK EXHAUST TO RETAIN CATALYTIC CONVERTER(S).
    • 2. APPLICATIONS WITH OXYGEN SENSOR WILL REQUIRE PURCHASE OF REDUCERS WITH O2 FITTINGS.
    • 3. WILL NOT FIT WITH A.I.R. (SMOG) PUMP.
    • 4. MUST USE ORIGINAL FACTORY BIG BLOCK FRAME STANDS, MOTOR MOUNTS AND HARDWARE.
    • 5. WORKS WITH AIR CONDITIONING.

    HEADER SPECS:

    • MATERIAL TYPE: STEEL
    • HEADER TUBE TYPE: LONG TUBE
    • FLANGE THICKNESS: .380"
    • FINISH: CERAMIC HOT COATED
    • HARDWARE INCLUDED: YES
    • GASKETS INCLUDED: YES
    • TUBE OUTSIDE DIAMETER: 1 3/4"
    • COLLECTOR DIAMETER: 3"
    • REDUCERS: 2 1/2"

    CERAMIC HOT COATING WARNING:

    • WARNING: CHC COATINGS WILL BURN AND BE DAMAGED AT EXHAUST TEMPERATURES OVER 1300 DEGREES. A LEAN FUEL MIXTURE CAN GENERATE EXHAUST TEMPERATURES EXCEEDING 1700-1900 DEGREES. IF THE COATING IS DAMAGED DUE TO A LEAN CONDITION, THE COATING WILL NOT BE WARRANTED, BUT CAN BE RECOATED FOR A FEE. NO WARRANTY OR RETURNS ON CERAMIC HOT COATED EXHAUST ITEMS ONCE THEY HAVE BEEN INSTALLED.

    HEADER RETURN POLICY:

    • PLEASE REFER TO THE HEADER MEASUREMENT CHART BELOW TO MAKE SURE THE HEADER WILL FIT YOUR VEHICLE AND APPLICATION BEFORE ORDERING. IN THE EVENT YOU ORDER A HEADER THAT WILL NOT FIT YOUR VEHICLE AND APPLICATION, YOU MAY RETURN THEM FOR A REFUND, PROVIDING YOU DONT DAMAGE THE HEADER. WHEN YOU RECEIVE THE HEADER THE FINISH WILL BE PROTECTED AND MUST REMAIN UNSCRATCHED FOR A REFUND. IF YOU BEND OR DIMPLE ANY OF THE TUBES OR SCRATCH THE FINISH, WE WILL NOT BE ABLE TO SELL THE HEADER AND WILL NOT BE ABLE TO PROCESS A REFUND. USE CARE WHEN TRIAL FITTING HEADERS. REPACK THEM WELL TO PREVENT DAMAGE RETURNING THEM TO US. WE WONT PROCESS REFUNDS FOR SCRATCHED, DIMPLED, DENTED, OR BENT HEADERS.

      • YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THESE HEADERS HERE.
