HEADER,BBC,1 3/4",75-91 GM TRUCKS,SUV,LONG TUBE,3",CHROME PLATED

HEADER,BBC,1 3/4",75-91 GM TRUCKS,SUV,LONG TUBE,3",CHROME PLATED

440-2446

$449.99
$449.99
This item requires an additional shipping fee of $20.00 over standard shipping.
View full details

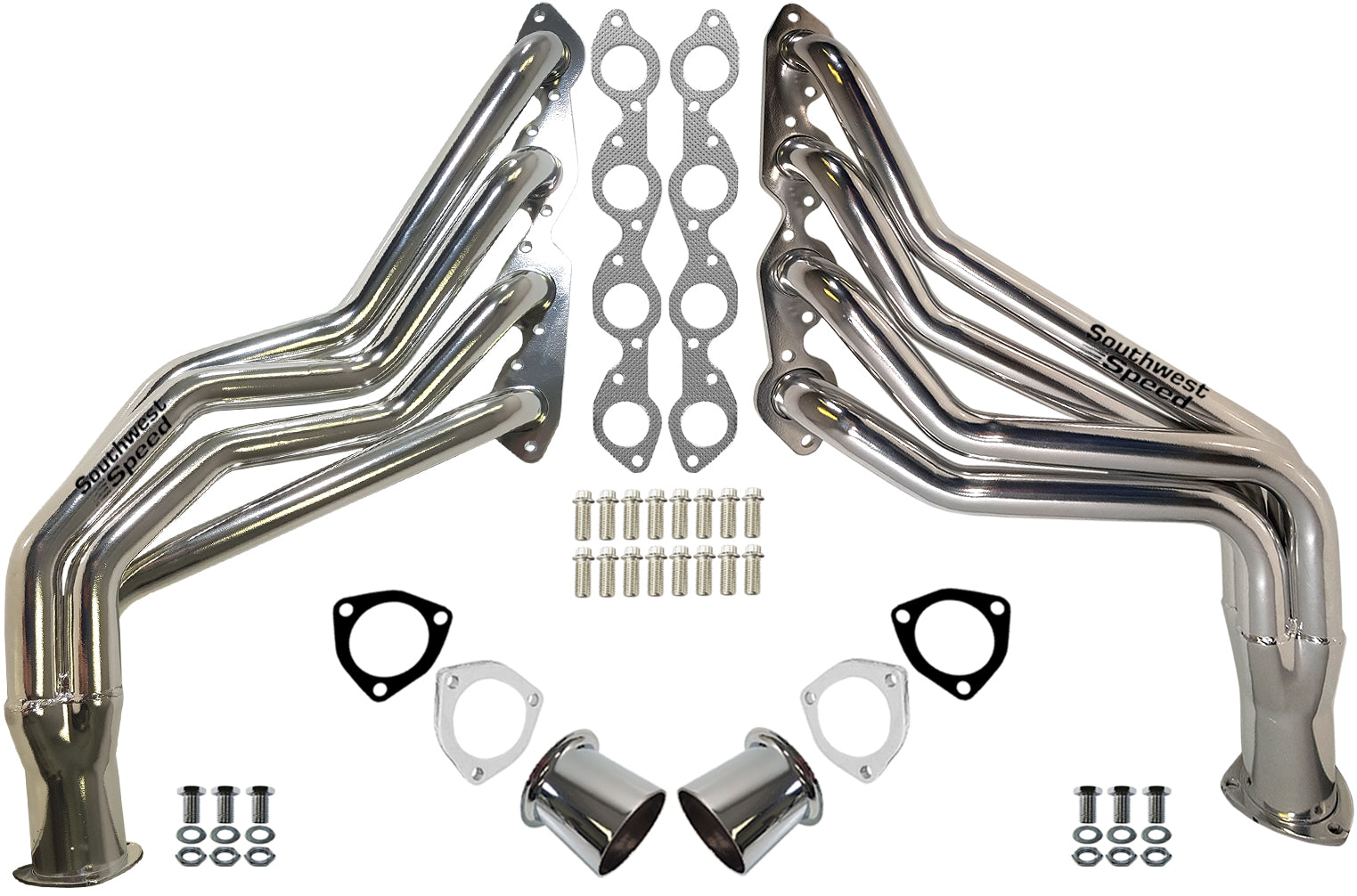

  • BRAND NEW SOUTHWEST SPEED TRIPLE PROCESS CHROME PLATED PERFORMANCE LONG TUBE HEADERS THAT ARE DIRECT FIT FOR 1975-1991 GM TRUCKS WITH BIG BLOCK CHEVY 396-454 CU. IN. ENGINES (SWS PART #440-2446).

  • THIS PAIR OF SOUTHWEST SPEED PERFORMANCE LONG TUBE HEADERS OFFER AN IMMEDIATE INCREASE IN PERFORMANCE BY ELIMINATING BACKPRESSURE, IMPROVING EXHAUST FLOW, AND BUILDING MORE HORSEPOWER. THE CONSISTENT TUBING DIAMETER CONTRIBUTES TO THE SMOOTH AIR FLOW AND GREATER EXHAUST VELOCITY OF THESE HEADERS. THESE HEADERS ARE A DIRECT REPLACEMENT FOR 1975-1991 CHEVY & GMC TRUCKS, SUBURBANS, BLAZERS, AND JIMMYS WITH BIG BLOCK CHEVY 396-454 CU. IN. ENGINES. THESE HEADERS ARE GROUND PARALLEL WITH .380" FLANGES ON THE CYLINDER HEAD SURFACE, AND FEATURE 1 3/4" PRIMARY TUBES WITH 3" COLLECTORS, COMPLETE WITH HEADER BOLTS AND GASKETS AND REDUCER BOLTS AND GASKETS. INCLUDES A PAIR OF 2 1/2" REDUCERS TO COMPLETE THE INSTALLATION.

  • WE STRONGLY RECOMMEND THAT YOU REFER TO OUR COMPATIBILITY LIST TO MAKE SURE THESE HEADERS FIT YOUR VEHICLE.

    • FEATURES:

    • PERFORMANCE LONG TUBE HEADERS
    • 1 3/4" PRIMARIES TO THE 3" COLLECTORS
    • 2 1/2" REDUCERS
    • MORE PERFORMANCE
    • INCREASES HORSEPOWER & TORQUE
    • BETTER FUEL MILEAGE
    • GREAT CHOICE TO REPLACE CAST IRON EXHAUST MANIFOLDS
    • ENHANCES THE LOOKS OF THE ENGINE COMPARTMENT
    • INCLUDES GASKETS AND MOUNTING HARDWARE
    • TRIPLE PROCESS CHROME PLATED TO RESIST EARLY CORROSION

    DIRECT FIT APPLICATIONS:

    • GM TRUCKS WITH BIG BLOCK CHEVY 396-454 CU. IN. ENGINES:
      • CHEVY:
        • 1/2 TON TRUCKS:
          • 1975-1987 1/2 TON TRUCKS 2WD
          • 1975-1981 1/2 TON TRUCKS 4WD
        • 3/4 TON TRUCKS:
          • 1975-1987 3/4 TON TRUCKS 2WD
          • 1975-1981 3/4 TON TRUCKS 4WD
        • 1 TON TRUCKS:
          • 1975-1987 1 TON TRUCKS 2WD
        • BLAZER:
          • 1975-1987 K5 BLAZER 2WD
          • 1975-1981 K5 BLAZER 4WD
        • SUBURBAN:
          • 1975-1991 SUBURBAN 2WD
          • 1975-1981 SUBURBAN 4WD
      • GMC:
        • 1/2 TON TRUCKS:
          • 1975-1987 1/2 TON TRUCKS 2WD
          • 1975-1981 1/2 TON TRUCKS 4WD
        • 3/4 TON TRUCKS:
          • 1975-1987 3/4 TON TRUCKS 2WD
          • 1975-1981 3/4 TON TRUCKS 4WD
        • 1 TON TRUCKS:
          • 1975-1987 1 TON TRUCKS 2WD
        • JIMMY:
          • 1975-1987 JIMMY 2WD
          • 1975-1981 JIMMY 4WD
        • SUBURBAN:
          • 1975-1991 SUBURBAN 2WD
          • 1975-1981 SUBURBAN 4WD

    IMPORTANT NOTES & EXCLUSIONS:

    • 1. MUST MODIFY STOCK EXHAUST TO RETAIN CATALYTIC CONVERTER(S).
    • 2. APPLICATIONS WITH OXYGEN SENSOR WILL REQUIRE PURCHASE OF REDUCERS WITH O2 FITTINGS.
    • 3. WILL NOT FIT WITH A.I.R. (SMOG) PUMP.
    • 4. MUST USE ORIGINAL FACTORY BIG BLOCK FRAME STANDS, MOTOR MOUNTS AND HARDWARE.
    • 5. WORKS WITH AIR CONDITIONING.

    HEADER SPECS:

    • MATERIAL TYPE: STEEL
    • HEADER TUBE TYPE: LONG TUBE
    • FLANGE THICKNESS: .380"
    • FINISH: TRIPLE PROCESS CHROME PLATED
    • HARDWARE INCLUDED: YES
    • GASKETS INCLUDED: YES
    • TUBE OUTSIDE DIAMETER: 1 3/4"
    • COLLECTOR DIAMETER: 3"
    • REDUCERS: 2 1/2"

    CHROME WARNING:

  • DUE TO A REVISED CHROMING PROCESS BROUGHT ON BY RECENT EPA REGULATIONS AND HIGH LABOR COSTS, TODAYS CHROME IS NOT THE QUALITY OF DAYS GONE BY. BE AWARE: EXHAUST COMPONENTS WHICH ARE CHROME PLATED ARE NOW MUCH MORE SUSCEPTIBLE TO BLUEING, BLISTERING, PEELING & CORROSION. WE SEE VERY FEW HEADERS THAT DO NOT CHANGE COLOR ONCE EXHAUST TEMPERATURES ARE ACHIEVED. NO WARRANTY OR RETURNS ON CHROME EXHAUST ITEMS ONCE THEY HAVE BEEN INSTALLED.

    • HEADER RETURN POLICY:

  • PLEASE REFER TO THE HEADER MEASUREMENT CHART BELOW TO MAKE SURE THE HEADER WILL FIT YOUR VEHICLE AND APPLICATION BEFORE ORDERING. IN THE EVENT YOU ORDER A HEADER THAT WILL NOT FIT YOUR VEHICLE AND APPLICATION, YOU MAY RETURN THEM FOR A REFUND, PROVIDING YOU DONT DAMAGE THE HEADER. WHEN YOU RECEIVE THE HEADER THE FINISH WILL BE PROTECTED AND MUST REMAIN UNSCRATCHED FOR A REFUND. IF YOU BEND OR DIMPLE ANY OF THE TUBES OR SCRATCH THE FINISH, WE WILL NOT BE ABLE TO SELL THE HEADER AND WILL NOT BE ABLE TO PROCESS A REFUND. USE CARE WHEN TRIAL FITTING HEADERS. REPACK THEM WELL TO PREVENT DAMAGE RETURNING THEM TO US. WE WONT PROCESS REFUNDS FOR SCRATCHED, DIMPLED, DENTED, OR BENT HEADERS.

    • YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THESE HEADERS HERE.
