HEADER,SBC,1 5/8",1932 FORD HI-BOY,3 1/2",CERAMIC HOT COATED

HEADER,SBC,1 5/8",1932 FORD HI-BOY,3 1/2",CERAMIC HOT COATED

440-2323

$399.99
$399.99
This item requires an additional shipping fee of $20.00 over standard shipping.
View full details

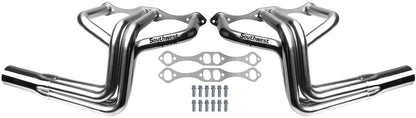

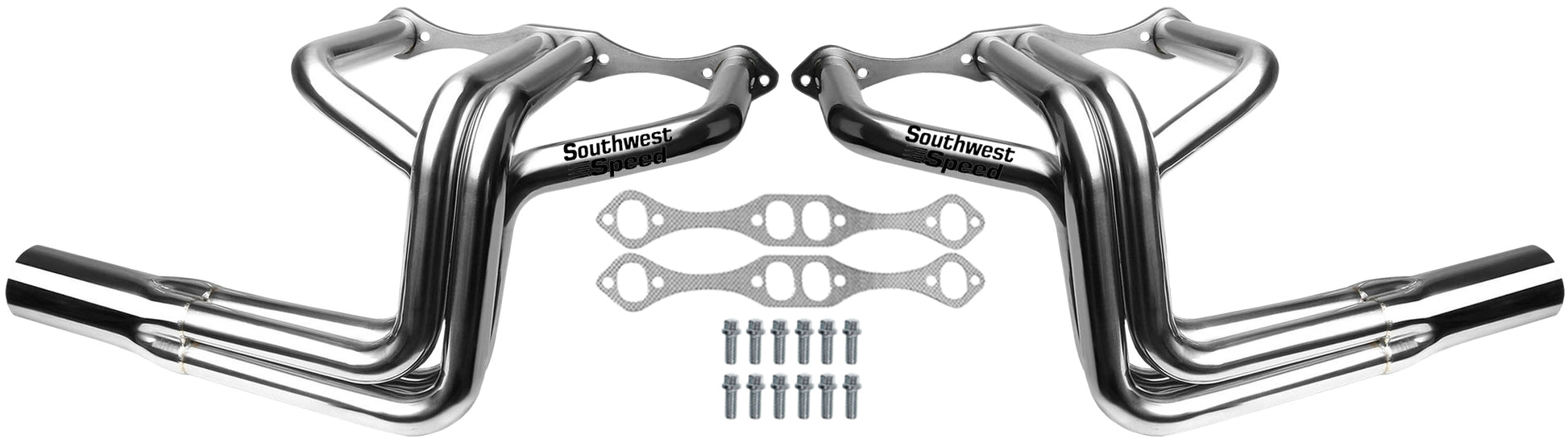

  • BRAND NEW PAIR OF SOUTHWEST SPEED CERAMIC HOT COATED 1932 FORD HI BOY HEADERS FOR SMALL BLOCK CHEVY 262-400CI ENGINES.

  • THIS PAIR OF SOUTHWEST SPEED 1932 HI BOY HEADERS ARE GREAT FOR CLOSE OR TIGHT-FIT APPLICATIONS, & ARE DESIGNED TO PROVIDE EXTRA FRONT TIRE & DOOR CLEARANCE WHILE ROUTING THE EXHAUST ON THE OUTSIDE OF THE FRAME RAILS ALONG THE SIDE OF A 32 HI BOY. FEATURES 1-5/8" TUBES WITH 3-1/2" COLLECTORS, COMPLETE WITH HEADER BOLTS AND GASKETS. THESE HEADERS ARE GROUND PARALLEL WITH .380" FLANGES ON THE CYLINDER HEAD SURFACE, AND FITS ANGLE PLUG OVAL PORT HEADS ONLY.

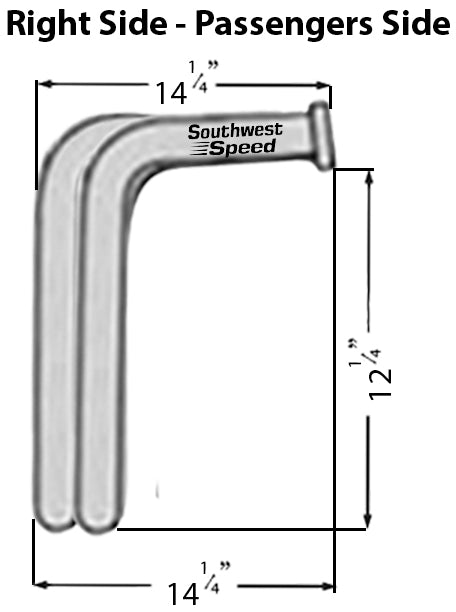

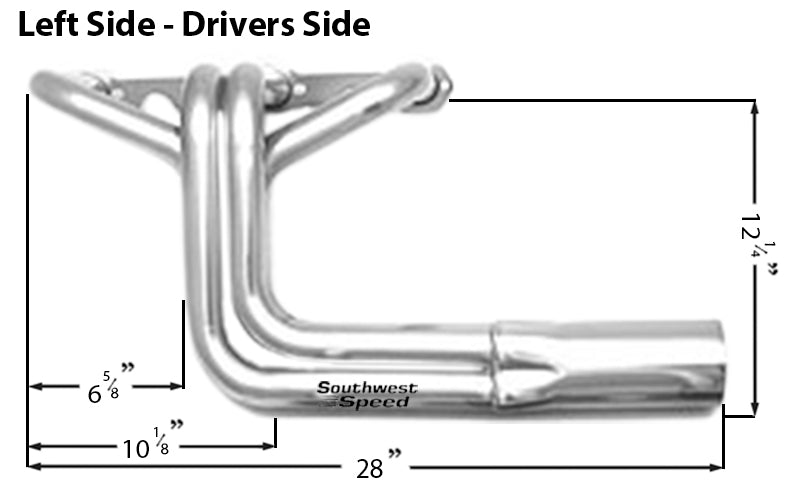

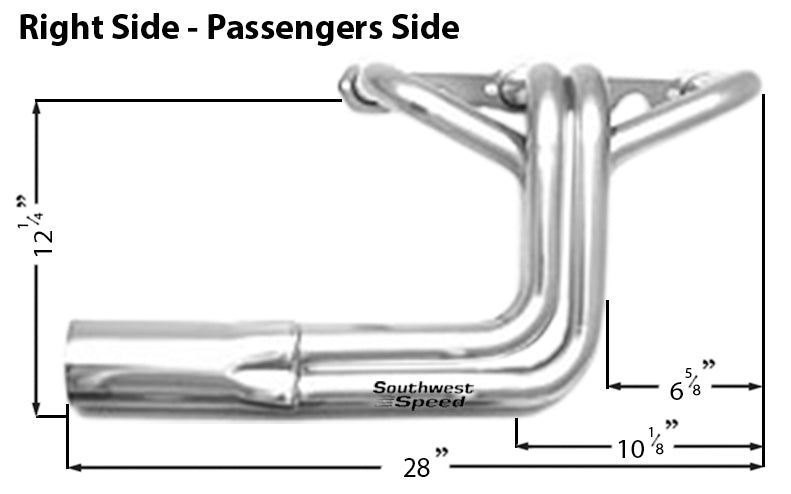

  • NOTE: WE STRONGLY SUGGEST YOU REFER TO MEASUREMENT CHART BELOW TO INSURE HEADERS WILL FIT YOUR VEHICLE AND APPLICATION, BEFORE ORDERING.

    • FEATURES:

    • WORK GREAT ON 1932 FORD HI-BOYS & SIMILAR FENDERLESS EARLY MODEL STREET RODS
    • GREAT FOR ROADSTERS, HOT RODS, STREET RODS, RAT RODS, & ANY NOSTALGIC ROD
    • GREAT CHOICE TO REPLACE STOCK CAST IRON EXHAUST MANIFOLDS
    • 1-5/8" TUBES WITH 3-1/2" COLLECTORS
    • MORE PERFORMANCE
    • BETTER FUEL MILEAGE
    • ENHANCES THE LOOKS OF ANY ROD
    • INCLUDES BOLTS & GASKETS
    • CERAMIC HOT COATED TO RESIST EARLY CORROSION

    APPLICATIONS:

    • FITS 265-400 CU. IN. STANDARD, & VORTEC HEADS (NOT D-PORT, LT-1, OR ZZ4)
    • FITS ALL SMALL BLOCK CHEVROLET V-8 ENGINES WITH OVAL EXHAUST PATTERN

    SPECIFICATIONS:

    • HEADER TUBE TYPE: 1932 FORD HI BOY
    • MATERIAL TYPE: STEEL
    • FLANGE STYLE: OVAL PORT
    • PRIMARY TUBE OUTSIDE DIAMETER: 1.63"
    • FLANGE THICKNESS: .380"
    • COLLECTOR DIAMETER: 3.50"
    • PORT HEIGHT: 1.63"
    • PORT WIDTH: 1.47"

    CERAMIC HOT COATING WARNING:

    WARNING: CHC COATINGS WILL BURN AND BE DAMAGED AT EXHAUST TEMPERATURES OVER 1300 DEGREES. A LEAN FUEL MIXTURE CAN GENERATE EXHAUST TEMPERATURES EXCEEDING 1700-1900 DEGREES. IF THE COATING IS DAMAGED DUE TO A LEAN CONDITION, THE COATING WILL NOT BE WARRANTED, BUT CAN BE RECOATED FOR A FEE. NO WARRANTY OR RETURNS ON CERAMIC HOT COATED EXHAUST ITEMS ONCE THEY HAVE BEEN INSTALLED.

    HEADER RETURN POLICY:

    PLEASE REFER TO THE HEADER MEASUREMENT CHART BELOW TO MAKE SURE THE HEADER WILL FIT YOUR VEHICLE AND APPLICATION BEFORE ORDERING. IN THE EVENT YOU ORDER A HEADER THAT WILL NOT FIT YOUR VEHICLE AND APPLICATION, YOU MAY RETURN THEM FOR A REFUND, PROVIDING YOU DO NOT DAMAGE THE HEADER. WHEN YOU RECEIVE THE HEADER THE FINISH WILL BE PROTECTED AND MUST REMAIN UNSCRATCHED FOR A REFUND. IF YOU BEND OR DIMPLE ANY OF THE TUBES OR SCRATCH THE FINISH, WE WILL NOT BE ABLE TO SELL THE HEADER AND WILL NOT BE ABLE TO PROCESS A REFUND. USE CARE WHEN TRIAL FITTING HEADERS. REPACK THEM WELL TO PREVENT DAMAGE RETURNING THEM TO US. WE WILL NOT PROCESS REFUNDS FOR SCRATCHED, DIMPLED, DENTED, OR BENT HEADERS.
