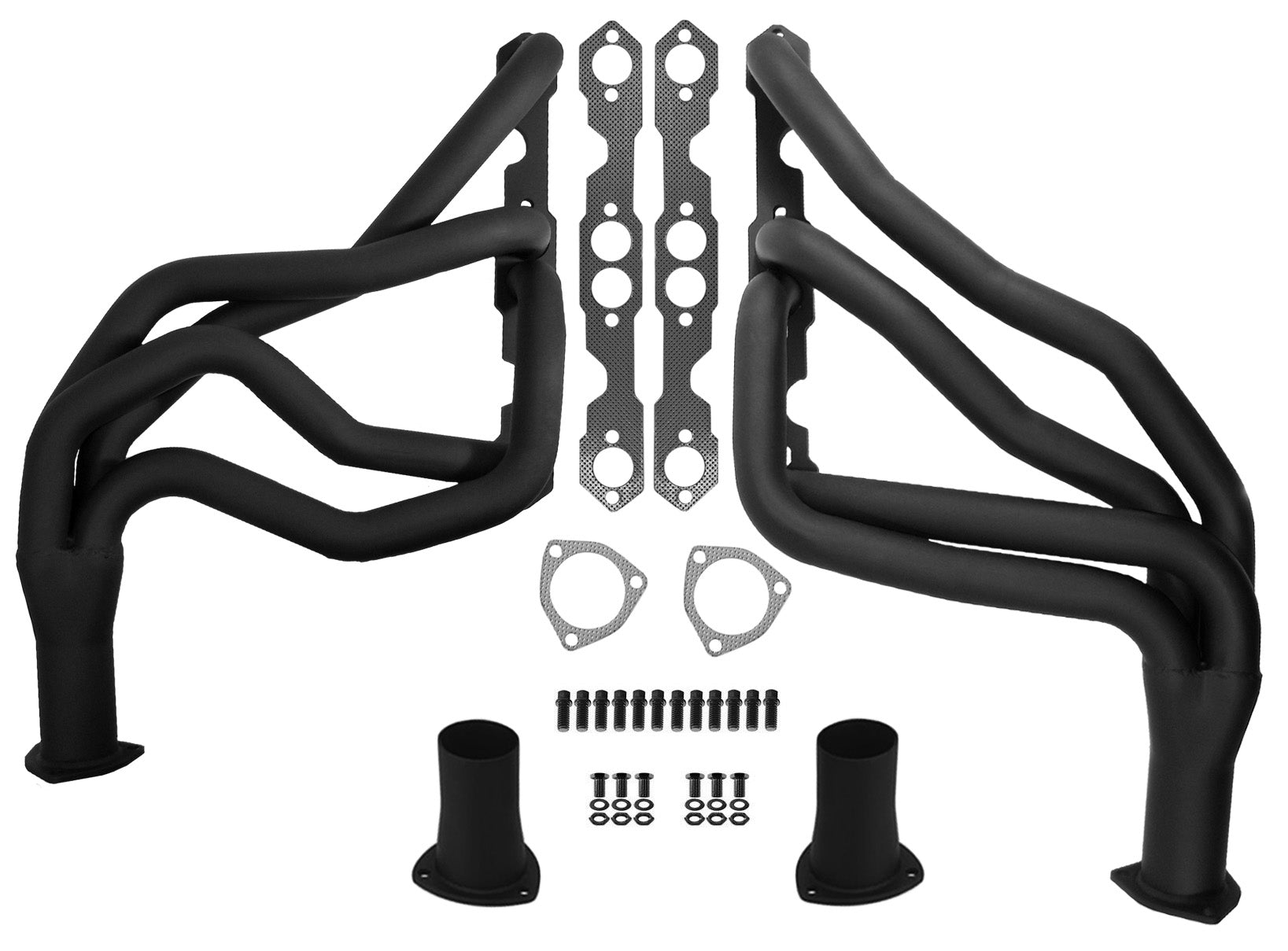

HEADER,SBC,1 5/8",67-87 GM 4WD TRUCKS,SUV,LONG TUBE,2 1/2",BLACK

BRAND NEW PAIR OF SOUTHWEST SPEED FLAT BLACK LONG TUBE HEADERS FOR 1967-1991 SMALL BLOCK CHEVY TRUCKS & SUVS, 265-400CI ENGINES

FEATURES:

• 1-5/8" PRIMARIES TO 2 1/2" COLLECTORS
• INCLUDES A PAIR OF 3" TO 2-1/2" REDUCERS
• MORE PERFORMANCE
• BETTER FUEL MILEAGE
• INCLUDES GASKETS AND MOUNTING HARDWARE
• PAINTED FLAT BLACK TO RESIST EARLY CORROSION

APPLICATIONS:

• CHEVROLET:
• 1967-1986 K10 4WD
• 1967-1986 K20 4WD
• 1967-1986 K30 4WD
• 1967-1986 K10 SUBURBAN 4WD
• 1967-1986 K20 SUBURBAN 4WD
• 1969-1987 K5 BLAZER 4WD
• GMC:
• 1967-1986 K15 4WD
• 1967-1986 K25 4WD
• 1967-1986 K35 4WD
• 1967-1986 K15 SUBURBAN 4WD
• 1967-1986 K25 SUBURBAN 4WD
• 1969-1987 JIMMY 4WD

HEADER SPECS:

• MATERIAL TYPE: STEEL
• HEADER TUBE TYPE: FULL LENGTH
• FLANGE THICKNESS: 3/8"
• FINISH: PAINTED FLAT BLACK
• HARDWARE INCLUDED: YES
• GASKETS INCLUDED: YES
• TUBE OUTSIDE DIAMETER: 1 5/8"
• COLLECTOR DIAMETER: 2 1/2"
• REDUCERS: 3" TO 2 1/2"

NOTES:

WILL NOT FIT ANGLE PLUG HEADS. MAY REQUIRE HEADER REDUCER WITH O2 FITTING. INSTALLATION REQUIRES LEFT SIDE A/C BRACKET OF SWS PART #410-5815. 1979 AND LATER VEHICLES EQUIPPED WITH SHORT COMPRESSOR WILL RE-USE THE ORIGINAL BRACKET.

PAINT WARNING:

THESE HEADERS ARE PAINTED WITH A HIGH HEAT DULL BLACK PAINT. IT WILL GENERALLY DULL EVEN MORE WHEN THE ENGINE IS STARTED. THE HEADER PAINT WILL SMOKE AND LET OFF AN ODOR THE FIRST FEW TIMES THE ENGINE IS UP TO TEMPERATURE AND THE BLACK FINISH WILL BECOME DULLER TURNING CLOSER TO GRAY IN COLOR. IF EXHAUST TEMPERATURES ARE EXTREME AT START THE PAINT WILL BLISTER AND PEEL. THERE IS NO WARRANTY ON HEADER PAINT.

HEADER RETURN POLICY:

PLEASE REFER TO THE HEADER MEASUREMENT CHART BELOW TO MAKE SURE THE HEADER WILL FIT YOUR VEHICLE AND APPLICATION BEFORE ORDERING. IN THE EVENT YOU ORDER A HEADER THAT WILL NOT FIT YOUR VEHICLE AND APPLICATION, YOU MAY RETURN THEM FOR A REFUND, PROVIDING YOU DO NOT DAMAGE THE HEADER. WHEN YOU RECEIVE THE HEADER THE FINISH WILL BE PROTECTED AND MUST REMAIN UNSCRATCHED FOR A REFUND. IF YOU BEND OR DIMPLE ANY OF THE TUBES OR SCRATCH THE FINISH, WE WILL NOT BE ABLE TO SELL THE HEADER AND WILL NOT BE ABLE TO PROCESS A REFUND. USE CARE WHEN TRIAL FITTING HEADERS. REPACK THEM WELL TO PREVENT DAMAGE RETURNING THEM TO US. WE WONT PROCESS REFUNDS FOR SCRATCHED, DIMPLED, DENTED, OR BENT HEADERS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE INSTRUCTIONS FOR THESE HEADERS HERE.
