HOT ROD FRONT BRAKE & SPINDLE KIT,5X5

HOT ROD FRONT BRAKE & SPINDLE KIT,5X5

203-878

$479.99
$479.99
This item requires an additional shipping fee of $30 over standard shipping.
View full details

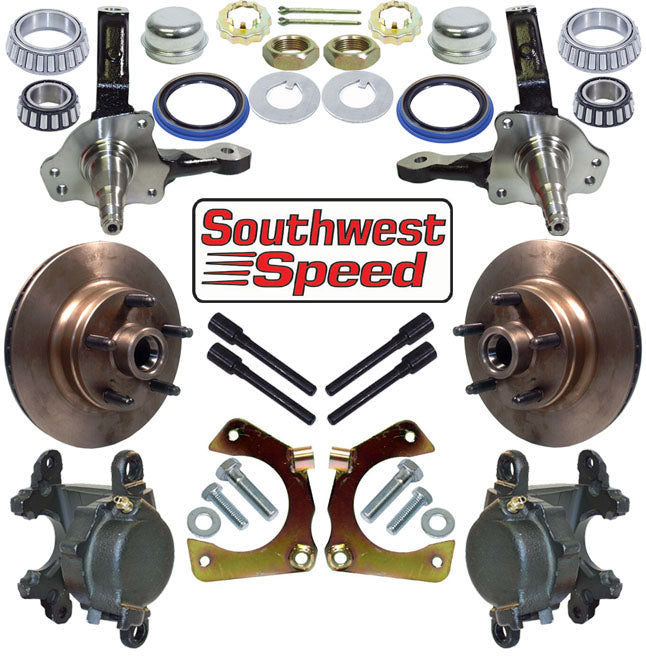

  • FRONT HUB, ROTOR, CALIPER, & SPINDLE KIT FOR CIRCLE TRACK RACE CARS, HOT RODS, STREET RODS, & RESTORATIONS WITH A 5 X 5" BOLT PATTERN
  • CUSTOM DESIGNED KIT FITS TOGETHER PERFECTLY WITHOUT ANY MODIFICATION & GIVES YOU ENOUGH PARTS TO DO BOTH FRONT WHEELS
  • KIT INCLUDES:
    • 2 - PINTO/MUSTANG II SPINDLES (LEFT & RIGHT):
      *FORGED STEEL CONSTRUCTION FOR MAXIMUM STRENGTH
      *10 DEGREE PIN INCLINATION
      *FITS STOCK PINTO UPPER & LOWER BALL JOINTS
      *WEIGHS APPROXIMATELY 8.28 LBS
    • 2 - GRANADA FRONT HUBS & ROTORS:
      *5 X 5" BOLT PATTERN WITH 5/8"-11 COARSE THREADED STUDS
      *.810" THICK X 11" O.D. ROTOR
      *RACES INSTALLED
      *IF YOU HAVE A 5 X 5" BOLT PATTERN ON THE REAR, YOU CAN PUT THESE ON THE FRONT & MAKE ALL 4 WHEELS MATCH
      *STRENGTH HAS NEVER & WILL NEVER BE A PROBLEM WITH SOUTHWEST SPEED HUBS & ROTORS; THEY ARE DESIGNED TO ALWAYS PREVENT OVERHEATING, DISTORTION, & CRACKING
      *WEIGHS APPROXIMATELY 17.50 LBS
    • 2 - COMPLETE BEARINGS KITS TO PUT THE PINTO SPINDLES ON THE GRANADA HUBS & ROTORS CONTAINING:
      *1 - HUB SEAL
      *1 - INNER WHEEL BEARING
      *1 - OUTER WHEEL BEARING
      *1 - SPINDLE NUT
      *1 - THRUST WASHER
      *1 - LOCK WASHER
      *1 - DUST COVER
      *1 - COTTER PIN
    • 2 - COMPLETELY BRAND NEW GM METRIC CALIPERS (LEFT & RIGHT):
      *BRAND NEW CAST STEEL CALIPERS
      *DIRECTLY REPLACES THE 1978 AND LATER D154 TYPE STOCK GM METRIC CALIPERS
      *2 1/2" STOCK PISTON SIZE (2 3/8" & 2 5/8" PISTONS AVAILABLE UPON REQUEST)
      *FLOATING DESIGN
      *INCLUDE BLEEDER SCREWS
    • 2 - BRAKE CALIPER BRACKETS TO PUT THE GM METRIC CALIPERS ON THE PINTO SPINDLES (LEFT & RIGHT):
      *LIGHTWEIGHT STEEL CONSTRUCTION
      *BOLT-ON DESIGN MOUNTS THE CALIPERS ON THE REAR SIDE OF THE FRONT WHEELS
    • 2 - COMPLETE BRAKE CALIPER BOLT KITS:
      *PROVIDES THE NECESSARY HARDWARE TO PUT THE BRAKE CALIPER BRACKETS ON THE PINTO SPINDLES WITH GM METRIC CALIPERS
      *EACH KIT INCLUDES: 2 - GM CALIPER BOLTS, 1 - 7/16" COARSE X 1 1/2" LONG HEX HEAD BOLT, 1 - 1/2" FINE X 2" LONG HEX HEAD BOLT, & 1 - 1/2" SAE MEDIUM FLAT WASHER
  • ORIGINAL, STOCK APPLICATIONS
    • THIS HUB & ROTOR DESIGN WAS STOCK ON THE FOLLOWING CARS (ONLY WITH A 5 X 4 1/2" BOLT PATTERN & 1/2"-20 FINE THREADED STUDS):
      *1975-80 FORD GRANADA
      *1974-77 FORD MAVERICK
      *1974-77 MERCURY COMET
      *1975-80 MERCURY MONARCH
      *1977-80 LINCOLN VERSAILLES
    • THESE SPINDLES WERE STOCK ON THE FOLLOWING CARS:
      *1974-80 FORD PINTO
      *1974-80 FORD MUSTANG II
      *1974-80 MERCURY BOBCAT
