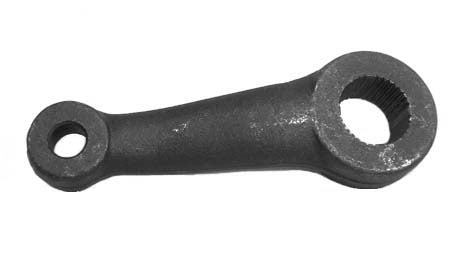

PITMAN ARM,64-67,MANUAL&SMALL POWER,5"CC

PITMAN ARM,64-67,MANUAL&SMALL POWER,5"CC

107-166

$69.99
$69.99
View full details
  • FITS:
    *"GM MANUAL" 525 SERIES SAGINAW BOX, WHICH IS THE DOMINANT MANUAL STEERING BOX ON ALMOST ALL GM CARS & FEATURES A 1"-32 SPLINE PITMAN ARM SHAFT
    *"SMALL GM METRIC POWER" 605 SERIES SAGINAW BOX, WHICH BEGAN BEING USED IN 1978 ON ABOUT 1/2 OF ALL GM CARS; THIS BOX IS DISTINCT FOR ITS ROUND, RING-RETAINED HOUSING COVER & FEATURES A 1"-32 PITMAN ARM SHAFT

  • FITS DRAG LINKS FROM:
    *1964-67 CHEVY CHEVELLE, EL CAMINO, MALIBU, & MONTE CARLO
    *1964-67 BUICK CENTURY, LUXUS, REGAL, SKYLARK, & SPECIAL (RWD)
    *1964-65 OLDSMOBILE CUTLASS, F85, VISTA CRUISER, 4-4-2, & CALAIS (RWD)

  • 100% BRAND NEW PIECES ENGINEERED TO DIRECTLY REPLACE OEM PITMAN ARMS

  • SPECIFIC DIMENSIONS:
    *MEASURES 5" FROM CENTER OF PITMAN SHAFT HOLE TO CENTER OF DRAG LINK HOLE
    *1"-32 SPLINE PITMAN SHAFT HOLE, COMMONLY REFERRED TO AS "SMALL SPLINE"
    *DRAG LINK TAPERED HOLE MEASURES .645" MAJOR I.D. & .565" MINOR I.D.
    • Has Vehicle Data
    Pitman Arms > 1964-67 Chevelle, Malibu, Monte Carlo, and El Camino
    Steering - Vehicle Data
