PITMAN ARM,1/2" BOLT,VEGA

PITMAN ARM,1/2" BOLT,VEGA

107-1448

$69.99
$69.99
View full details

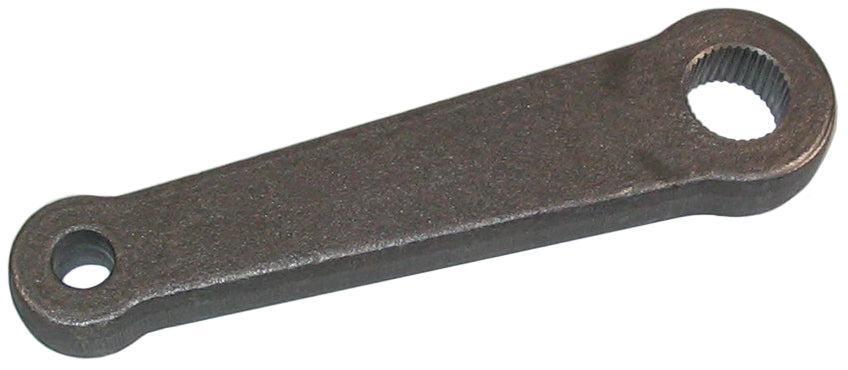

BRAND NEW FLAT, STOCK-FINISH PITMAN ARM FOR STREET ROD APPLICATIONS WITH A VEGA 140 GM MANUAL STEERING BOX (PART #107-1448). THESE ARE BRAND NEW ITEMS PRODUCED BY SOUTHWEST SPEED INC.

    FEATURES:

    • FITS VEGA MANUAL STEERING BOXES, LIKE THE ONES PICTURED BELOW AND THE ONES THAT WE ALSO HAVE AVAILABLE IN OUR STORE IN STOCK FINISH AND IN CHROME
    • 1" SPLINE DIAMETER
    • GOLD ZINC PLATED
    • NON-OFFSET DESIGN

      MEASURES:

      • 6" CENTER-TO-CENTER
      • 7 1/2" TOTAL LENGTH
      • 1/2" STRAIGHT-THROUGH TIE ROD HOLE

      APPLICATIONS:

      • THESE VEGA BOXES AND PITMAN ARMS ARE PERFECT FOR THE CROSS STEERING SYSTEM IN HOT ROD APPLICATIONS WITH STRAIGHT AXLE SETUPS: INCLUDING STREET RODS, RAT RODS, HOT RODS, T-BUCKETS, MODEL A, 1923-1948 FORDS, AND MANY OTHER VEHICLES:

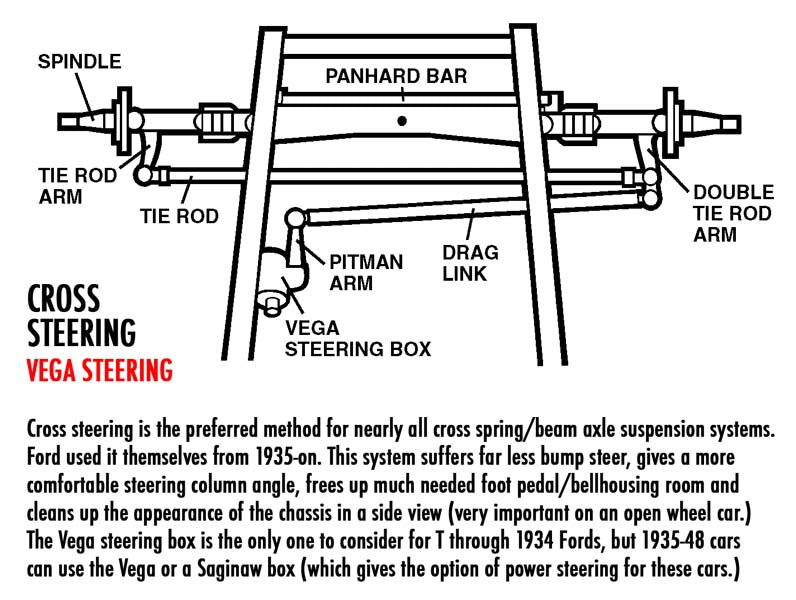

      • YOU CAN SEE A BETTER DESCRIPTION OF "CROSS-STEERING" IN THE DIAGRAM BELOW
      • WE DO HAVE THE VEGA STEERING BOXES AVAILABLE IN STOCK FINISH AND IN CHROME, AS WELL AS WITH A WELD-ON FRAME BRACKET AND A BOLT-ON BRACKET FOR THE TAPERED FRAMES ON 1935-1941 FORD CHASSIS
      • WE ALSO HAVE OTHER PITMAN ARMS AVAILABLE IN GOLD AND IN CHROME

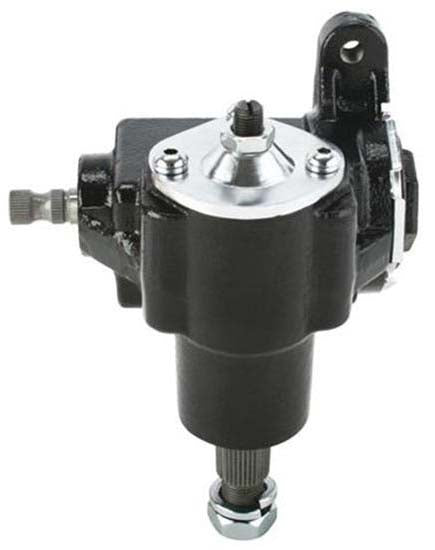

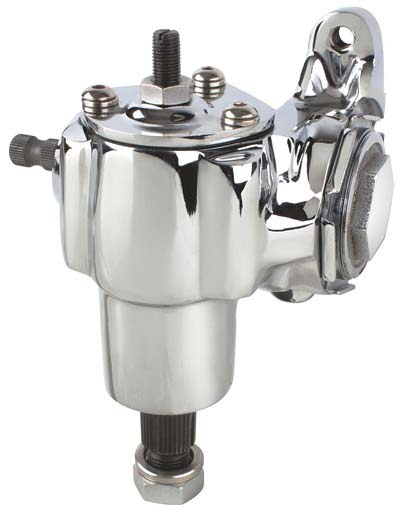

      THIS PITMAN ARM FITS THESE STEERING BOXES SHOWN BELOW (NOT INCLUDED WITH THIS LISTING):
