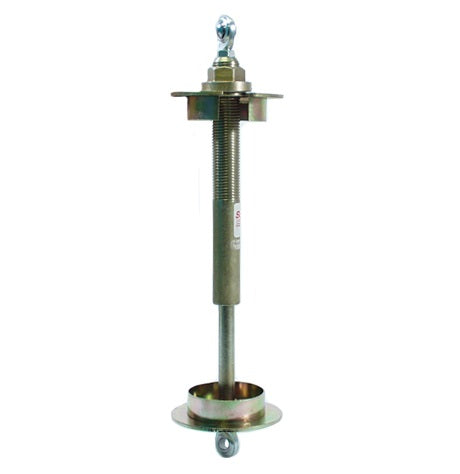

COILOVER ELIMINATOR,W/BUSHING & SEAL

COILOVER ELIMINATOR,W/BUSHING & SEAL

051-006

$99.99
$99.99
View full details
  • COMPRESSION=14" TO 15 1/2"
  • EXTENSION=21" TO 22 1/2"
  • ACCEPTS 7" TO 13" SPRINGS
  • LIGHTWEIGHT STEEL CONSTRUCTION
  • DETENT ACME NUT FOR QUICK ADJUSTMENT, CAN BE ADJUSTED BY WRENCH, OR BY HAND, WHEN CAR IS JACKED UP
  • HAS INTERNAL STOP SO UNIT CANNOT SEPERATE WHEN CAR IS JACKED UP
  • MAIN SHAFT SEAL TO KEEP DIRT OUT
  • SPACERS INCLUDED TO LENGTHEN UNIT
  • MAINTENANCE INSTRUCTIONS: THIS UNIT HAS SOME CLOSE TOLERANCE PARTS AND NEEDS TO BE DISASSEMBLED, CLEANED THROUGHOUT, INSPECTED, AND REASSEMBLED EVERY 4 TO 6 RACE NIGHTS (DEPENDING ON CONDITIONS). ASSEMBLE WITH ANTI-SEIZE ON THE PISTON AND LIGHT OIL ON ROD. REMOVE BOLT AND WASHER FROM MAIN BODY AND FILL WITH GREASE USING GREASE FITTING UNTIL GREASE COMES OUT BOLT HOLE. REPLACE BOLT AND WASHER AND REINSTALL.
    • Coilover Eliminator with Seal
