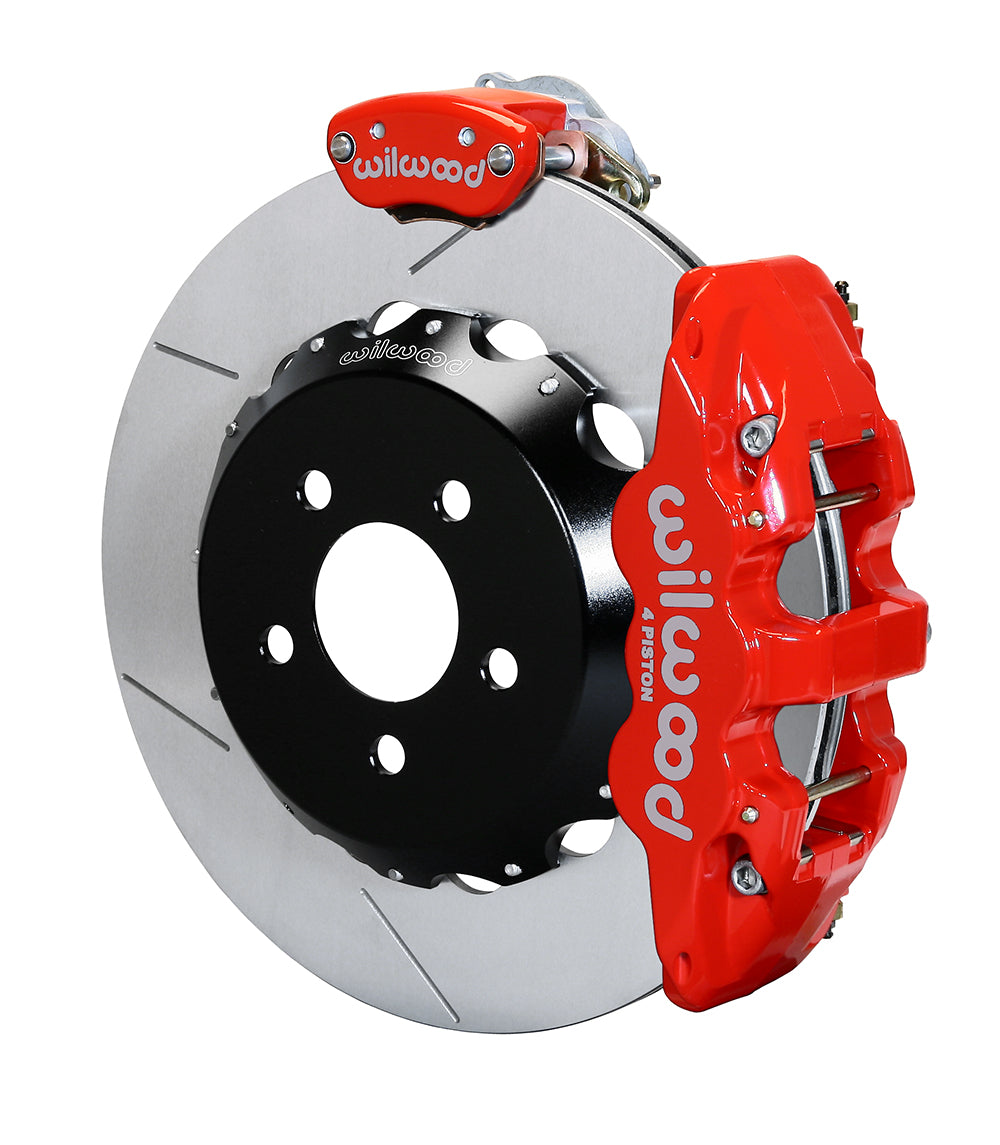

15-19 MUSTANG,REAR PARKING BRAKE,AERO4,MC4 RED CALIPERS,14" ROTORS

BRAND NEW WILWOOD BOLT-ON REAR PARKING BRAKE 14" DISC BRAKE KIT (PART #140-13888-R) FOR BOTH REAR WHEELS.

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

AERO4-MC4 BIG BRAKE REAR AXLE KITS REPLACE THE FACTORY DISC BRAKES AND USE THE MC4 PARKING BRAKE ASSEMBLY AS A COMPLIMENT TO FRONT BIG BRAKE UPGRADES ON LATE MODEL HIGH PERFORMANCE VEHICLES. HIGH CAPACITY BRAKING FROM THE AERO4R CALIPERS, BP-10 COMPOUND PADS, AND OVERSIZED 14.00" ROTORS ARE MATCHED TO THE OE MASTER CYLINDER OUTPUT, ABS FUNCTION, AND INDIVIDUAL VEHICLE BIAS REQUIREMENTS. ENHANCED BRAKE PERFORMANCE, INCREASED DURABILITY, AND HIGH-TECH STYLE COMPLIMENT BIG WHEEL, TIRE, AND SUSPENSION UPGRADES ON CUSTOMIZED VEHICLES AND ALL OTHERS WITH INCREASED BRAKE REQUIREMENTS.

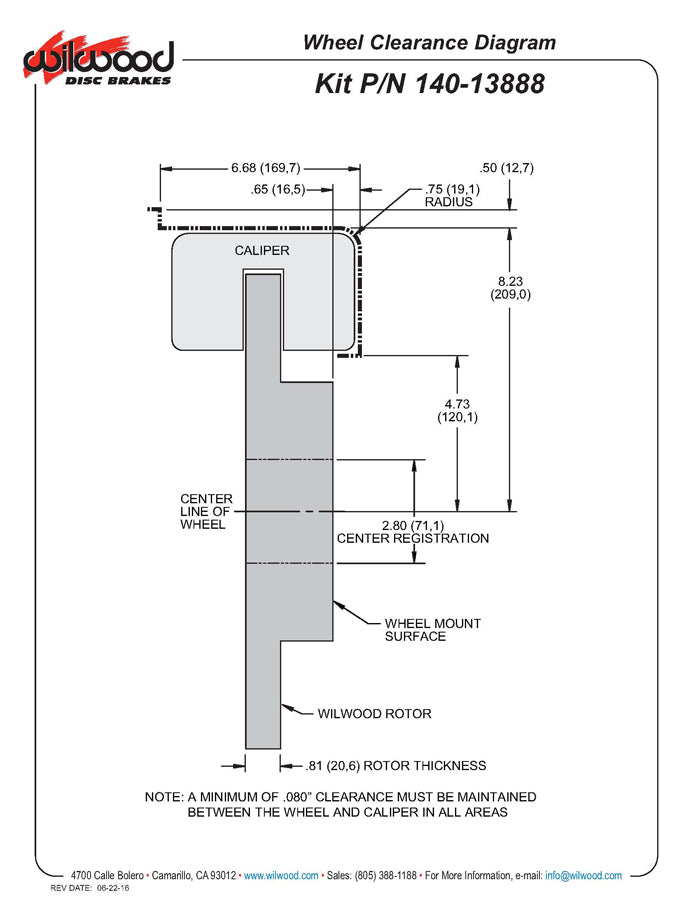

NOTE: THESE BIG BRAKE KITS REQUIRE AT LEAST 18" DIAMETER WHEELS.

COMPATIBLE WITH:

• FORD
• 2015 MUSTANG BASE
• 2019 MUSTANG BULLITT
• 2015 MUSTANG GT 50 YEARS ANNIVERSARY EDITION (EXCEPT GT350)
• 2015-2019 MUSTANG ECOBOOST / ECOBOOST PREMIUM
• 2015-2019 MUSTANG GT / GT PREMIUM (EXCEPT GT350)
• 2016-2017 MUSTANG V6

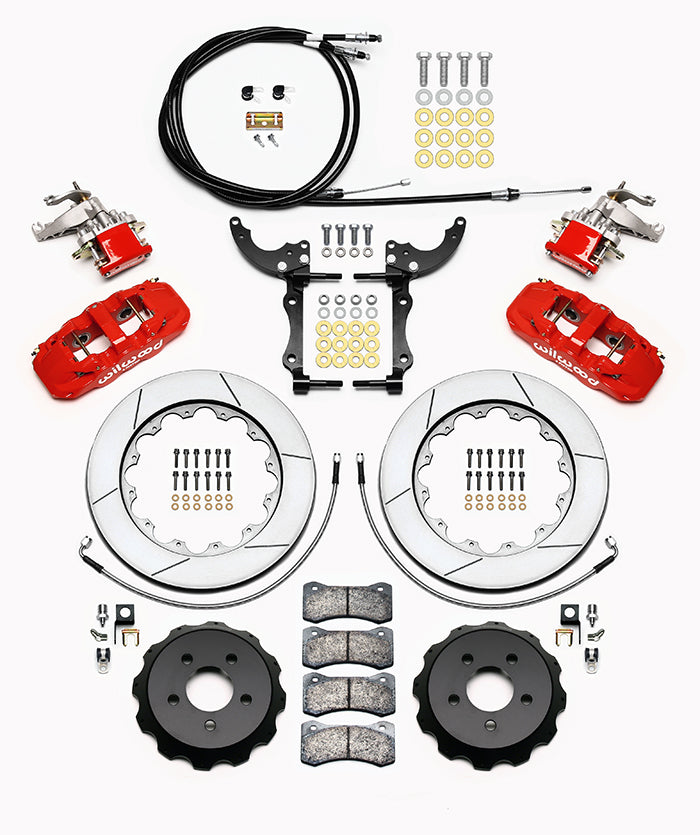

KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

• .810" THICK X 14.00" O.D. ROTORS
• AERO4 CALIPERS - RED
• MC4 PARKING BRAKE CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BRAKE HATS
• STEEL BRAIDED LINES WITH FITTINGS
• PARKING BRAKE CABLE KIT
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 68 LBS.

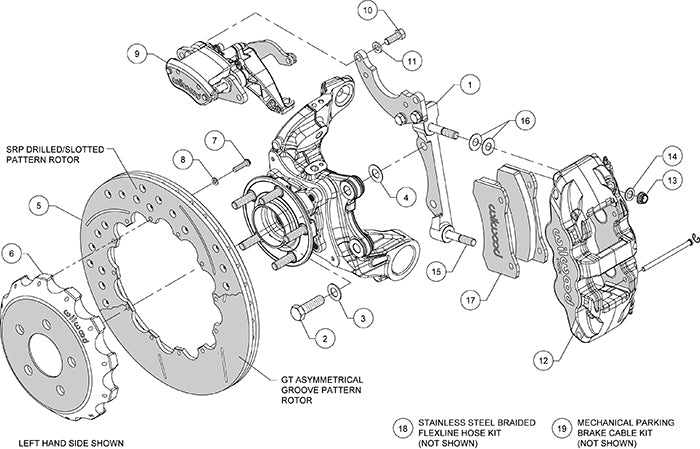

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
