EFI DIGITAL GAUGE DASH,TERMINATOR,SNIPER

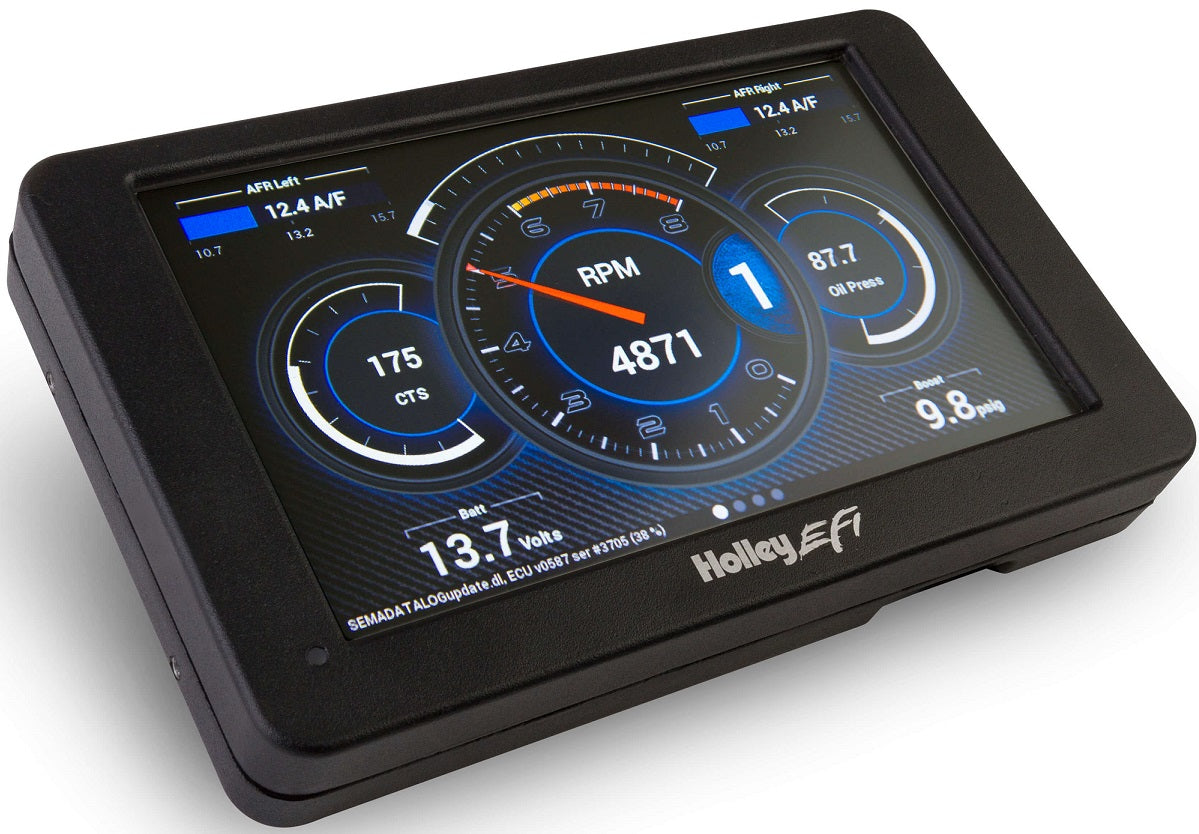

BRAND NEW HOLLEY 7" EFI DIGITAL DASH, COMPATIBLE WITH HOLLEY EFI, SNIPER EFI & TERMINATOR X SYSTEMS

THE HOLLEY EFI DIGITAL DASH IS COMPLETELY CUSTOMIZABLE WITH A VARIETY OF GAUGE & INDICATOR SCREENS THAT CAN BE PROGRAMMED TO DISPLAY ANY PARAMETER YOU NEED. THE DASH ALSO OFFERS A VIRTUAL SWITCH PANEL, USER DEFINED ALARMS, CONFIGURABLE SHIFT LIGHTS & CAN CONTROL ON SCREEN PLAYBACK OF YOUR EFI DATA LOGS.

THE HOLLEY EFI DIGITAL DASH MEASURES 7.5" WIDE, 4.625" TALL AND 1" DEEP WHICH MAKES IT A COMPACT, CUSTOMIZABLE DASH FOR USE IN A VARIETY OF MOTORSPORTS APPLICATIONS. THE DASH FEATURES A 7" LOW GLARE, HIGH BRIGHTNESS, HIGH CONTRAST, FULL COLOR TOUCH SCREEN FOR EASY VIEWING EVEN IN FULL SUN, PLUG AND PLAY CONNECTION TO ALL HOLLEY EFI SYSTEMS AS WELL AS A WEATHER PROOF ALUMINUM HOUSING FEATURING FLEXIBLE MOUNTING OPTIONS. MONITOR THE POWER OF YOUR HOLLEY EFI SYSTEM AT A GLANCE!

TUNING IS NOT SUPPORTED WITH TERMINATOR X ECU.

FEATURES:

• PLUG & PLAY CONNECTION TO ALL HOLLEY EFI SYSTEMS VIA CAN BUS
• COMPACT, CUSTOMIZABLE DASH FOR USE IN A VARIETY OF MOTORSPORTS APPLICATIONS
• 7" LOW GLARE, HIGH BRIGHTNESS, HIGH CONTRAST, FULL COLOR TOUCH SCREEN FOR EASY VIEWING EVEN IN FULL SUN
• 800X480 RESOLUTION WITH AUTO BRIGHTNESS
• OPERATING VOLTAGE MIN 8V - 20V
• WEATHER PROOF ALUMINUM HOUSING FEATURING FLEXIBLE MOUNTING OPTIONS
• COMPLETELY CUSTOMIZABLE DISPLAY OF ALL EFI PARAMETERS INCLUDING EVERY USER CONFIGURABLE INPUT/OUTPUT AVAILABLE
• MULTIPLE GAUGE AND INDICATOR TYPES WITH LIMITLESS CUSTOMIZATION OPTIONS

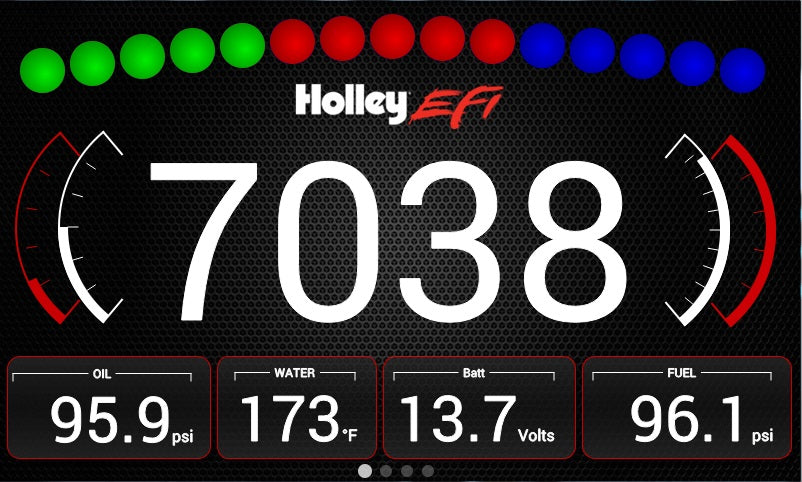

• QUICKLY TOGGLE BETWEEN MULTIPLE ACTIVE SCREENS (TUNE, WARM-UP, RACE, DRIVE, ETC.)
• VIRTUAL SWITCH PANEL (REPLACES THE NEED FOR PHYSICAL SWITCHES)
• USER DEFINED ALARMS FOR ANY INPUT
• CONFIGURABLE PROGRESSIVE SHIFT LIGHTS & LIGHT BAR
• CONTROL & ON SCREEN PLAYBACK OF EFI DATA LOGS
• DOWNLOAD & SAVE HOLLEY EFI DATA LOGS TO EXTERNAL USB MEMORY STICK
• EXPANDABLE INTERNAL STORAGE ON MICRO SD CARD
• SUPPORT FOR FUTURE USB DEVICES
• UPGRADABLE WITH FUTURE SOFTWARE ENHANCEMENTS
• OPTIONAL HARNESS AVAILABLE TO ADD PHYSICAL INPUT/OUTPUTS TO THE DASH THAT CAN BE USED TO PERFORM MULTIPLE OPERATIONS
• INTEGRATED 3 AXIS ACCELEROMETER

SPECS:

• BRAND: HOLLEY EFI
• DEPTH: 1"
• EMISSION CODE: 5
• HEIGHT: 4.625"
• PRODUCT TYPE: EFI PART
• SCREEN SIZE: 7" DIAGONAL
• SCREEN TYPE: RESISTIVE TOUCH SCREEN
• WIDTH: 7.5"

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DIGITAL DASH HERE, AND THE SNIPER EFI INSTRUCTIONS HERE.
